1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1 / 5
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment
1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment

1940nm Fiber Laser System for Medical Vascular Vein Treatment Equipment

Customization: Available
Type: 1940nm Laser
Theory: Laser
Send Inquiry

Product Description

📋 Basic Information
Model NO.
GMS- 1940nm EVLT
Application
Salon, Home
Portable
Portable
Product Name
1940nm Vascular Laser Equipment
Technology
Fiber Output Laser System
Function
Vein Elimination Laser Device
Laser Wavelength
1940nm + 635nm (Aiming Beam)
Output Power
8W / 12W / 15W
Output Mode
Pulse / Continuous
Cooling System
Air Cooling
🔍 Product Description

1940nm Fiber Laser System for Medical Vascular Vein Treatment

The 1940nm Laser System is an advanced minimally invasive solution designed for precise vascular treatment and aesthetic skin improvement. By utilizing a water-specific absorption wavelength, the system enables efficient vein closure with enhanced safety, comfort, and additional skin-tightening benefits.

1940nm Fiber Laser System
Core Technology: Water-Specific Absorption

The 1940nm wavelength corresponds precisely to the peak absorption coefficient of water molecules in biological tissue. Unlike traditional wavelengths, it interacts directly with water, allowing energy to be:

  • Rapidly absorbed and precisely confined.
  • Predictably converted into heat at the vessel wall.
  • Localized action rather than dispersed in circulating blood.
Three-Phase Biological Response
Phase 1: Thermal Activation

Laser energy is selectively absorbed by water surrounding the vein wall.

Phase 2: Dehydration & Coagulation

Causes endothelial cell dehydration and immediate vessel sealing.

Phase 3: Fibrosis & Clearance

Treated veins transform into fibrous tissue and are naturally absorbed.

✨ Clinical Advantages
  • Virtually Bruise-Free: Minimizes vessel rupture by targeting water instead of hemoglobin.
  • Low Risk of Hyperpigmentation: Confined thermal action reduces collateral damage.
  • Simultaneous Skin Tightening: Promotes collagen remodeling in the dermis.
  • Enhanced Patient Comfort: Precise energy delivery minimizes nerve stimulation.
📊 Technical Parameters
Item Specification
Laser Wavelength1940nm + 635nm
Output Power8W / 12W / 15W
Output ModePulse / Continuous
Pulse Width15ms - 60ms
Frequency1 - 9Hz
Fiber TypeFiber-optic coupling
Fiber Core Diameter≥200μm
Operation Interface12.0-inch touch screen
Input VoltageAC 100-240V, 50/60Hz
Machine Weight15 kg (Net) / 20 kg (Gross)
📸 Detailed Photos & Design

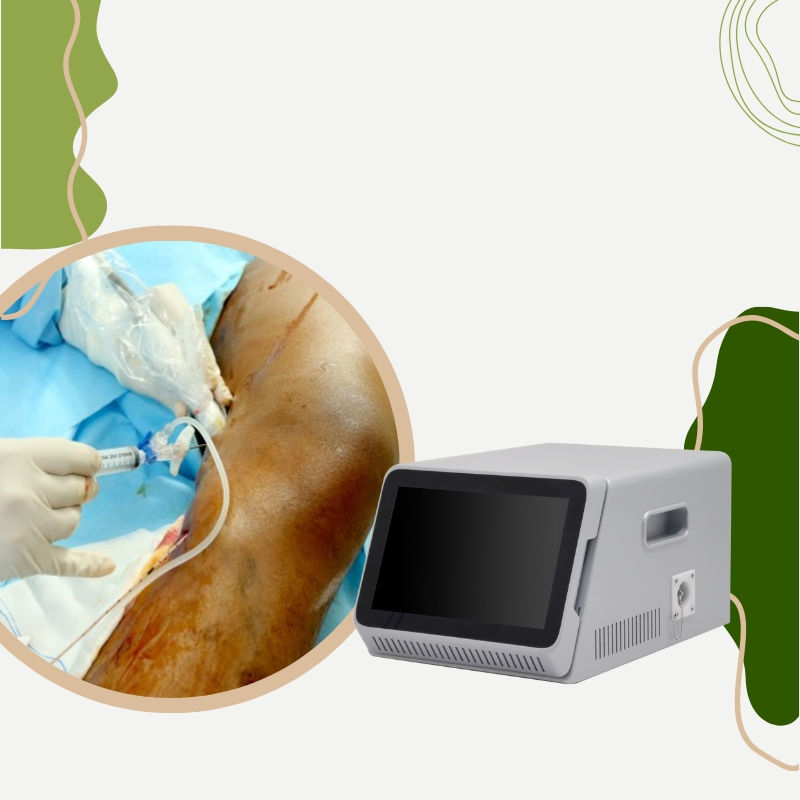

Detailed Laser View
  • High-stability laser source with precise energy control.
  • Large touch screen for intuitive parameter adjustment.
  • Compact design with professional flight case for transport.
Gallery
Fiber Laser System View 1 Fiber Laser System View 2 Fiber Laser System View 3
⚠️ Safety & Contraindications
Precautions:
  • Professional training required.
  • Wear proper eye protection.
  • Avoid infected or inflamed skin areas.
Contraindications:
  • Severe coagulation disorders.
  • Active skin infections.
  • Pregnancy.

Frequently Asked Questions

How does the 1940nm wavelength differ from traditional lasers?
The 1940nm wavelength specifically targets water molecules in the vessel wall rather than hemoglobin. This results in more precise closure with significantly less bruising and collateral tissue damage compared to traditional wavelengths.
Is the treatment for varicose veins permanent?
Yes, once the vessel is treated, it undergoes a process of fibrosis and is eventually absorbed by the body's natural metabolism, leading to long-term elimination of the target vessel.
What is the recovery time like?
Due to the precise energy delivery and minimal thermal diffusion, patients experience enhanced comfort and a shorter recovery period with very low risk of post-inflammatory hyperpigmentation.
Can this machine be used for facial vascular lesions?
Yes, it is suitable for a wide range of applications including superficial vascular lesions, spider veins, and facial/body vascular treatments.
Does the laser help with skin tightening?
Yes, the controlled thermal stimulation from the 1940nm laser promotes collagen contraction and remodeling in the dermis, improving skin firmness simultaneously.
Is eye protection necessary during operation?
Absolutely. Proper laser-safety eye protection must be worn by both the operator and the patient during any clinical procedure.
