| Feature | Reusable | Certification | CE, ISO13485 |
|---|---|---|---|
| Group | All People | Port of Shipment | Shanghai Ningbo |
| Customized | Yes | Delivery Time | a Month |
| OEM Service | Yes | Quality | 100% Inspection |
| Specification | Metal | Origin | China |

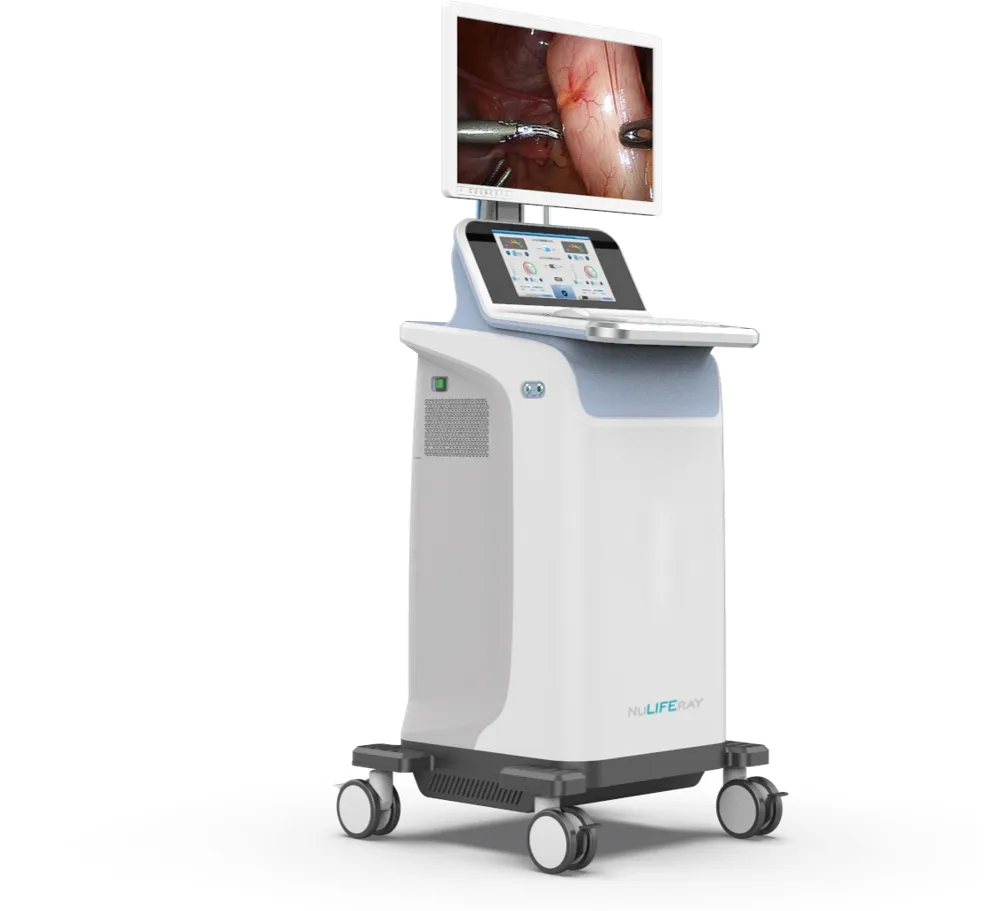

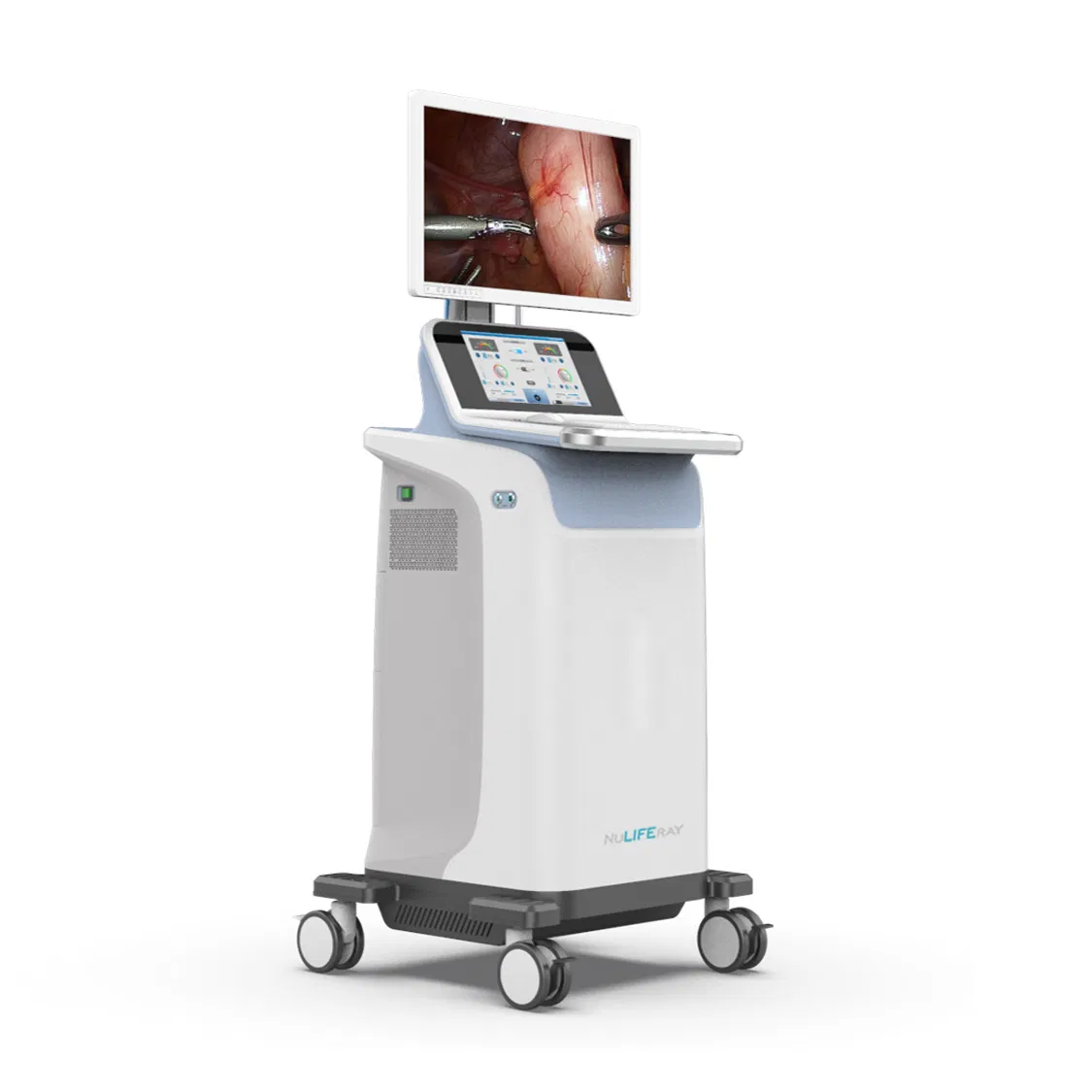

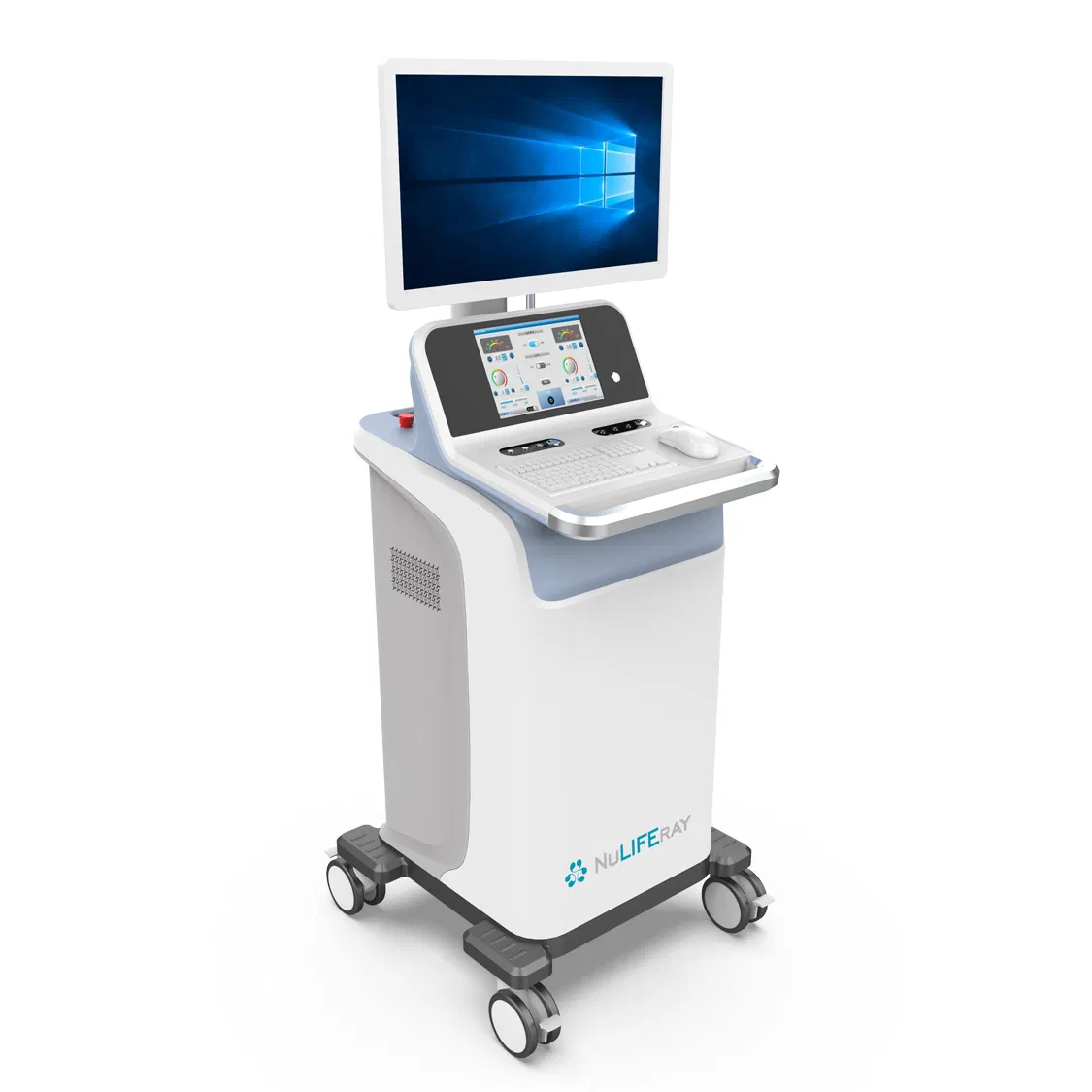

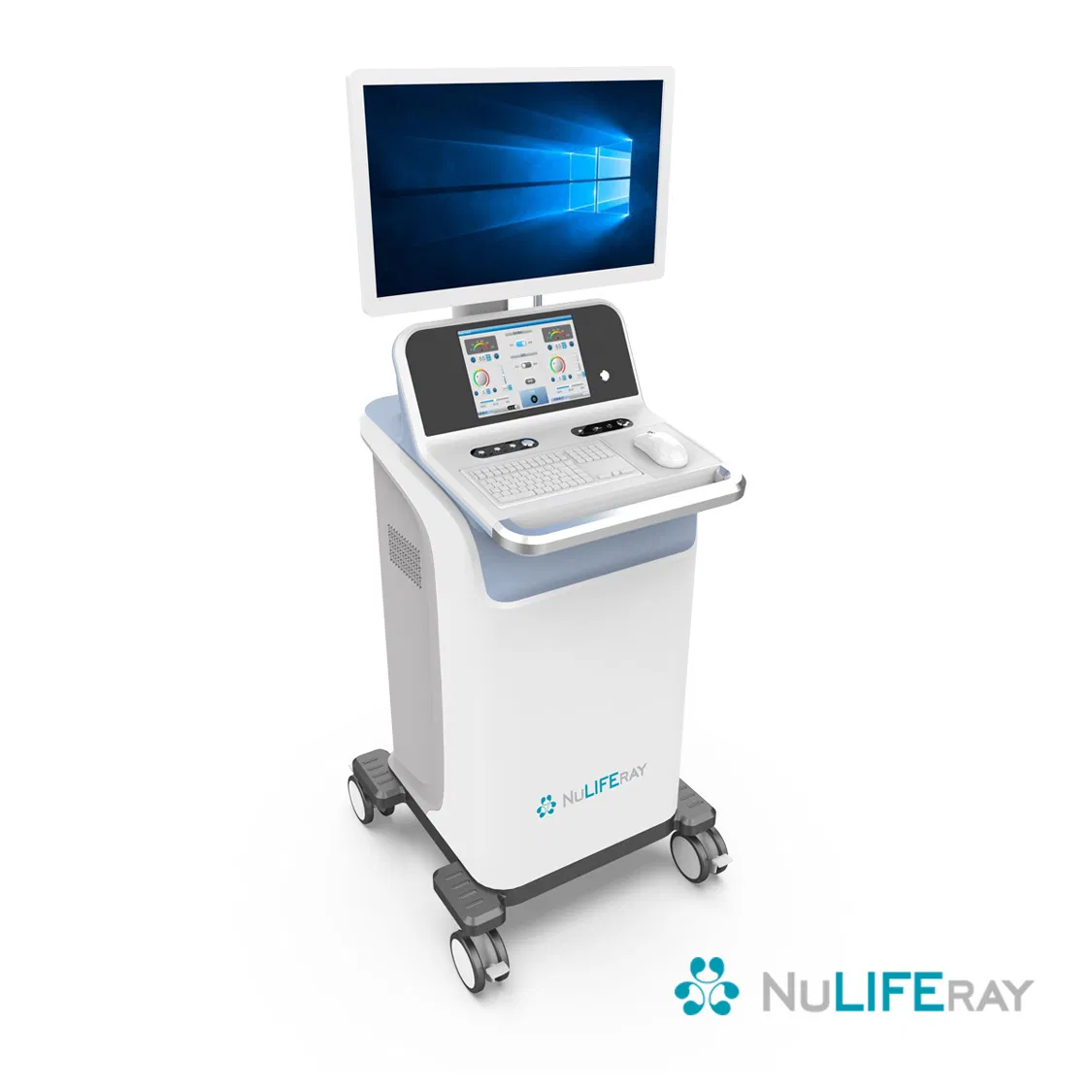

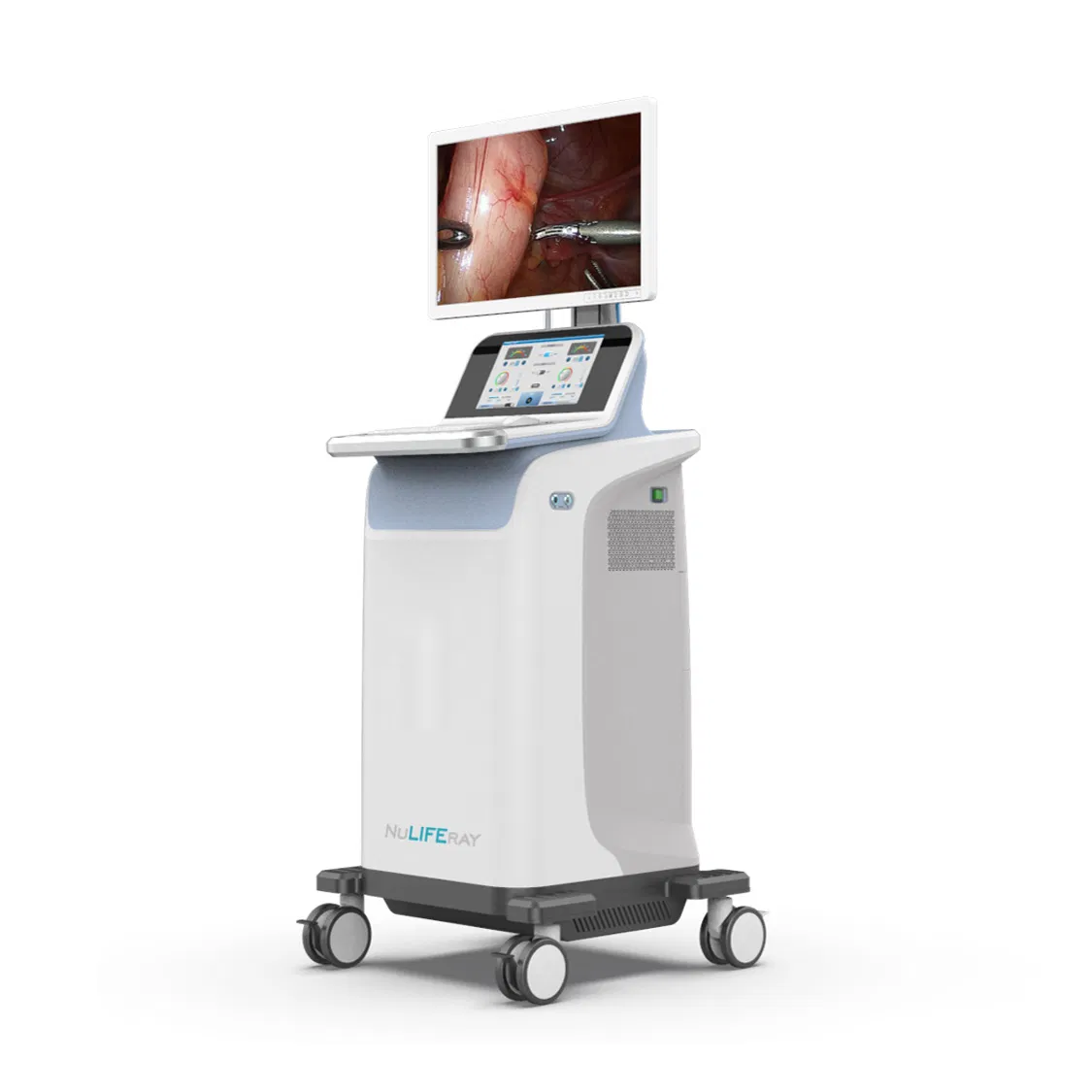

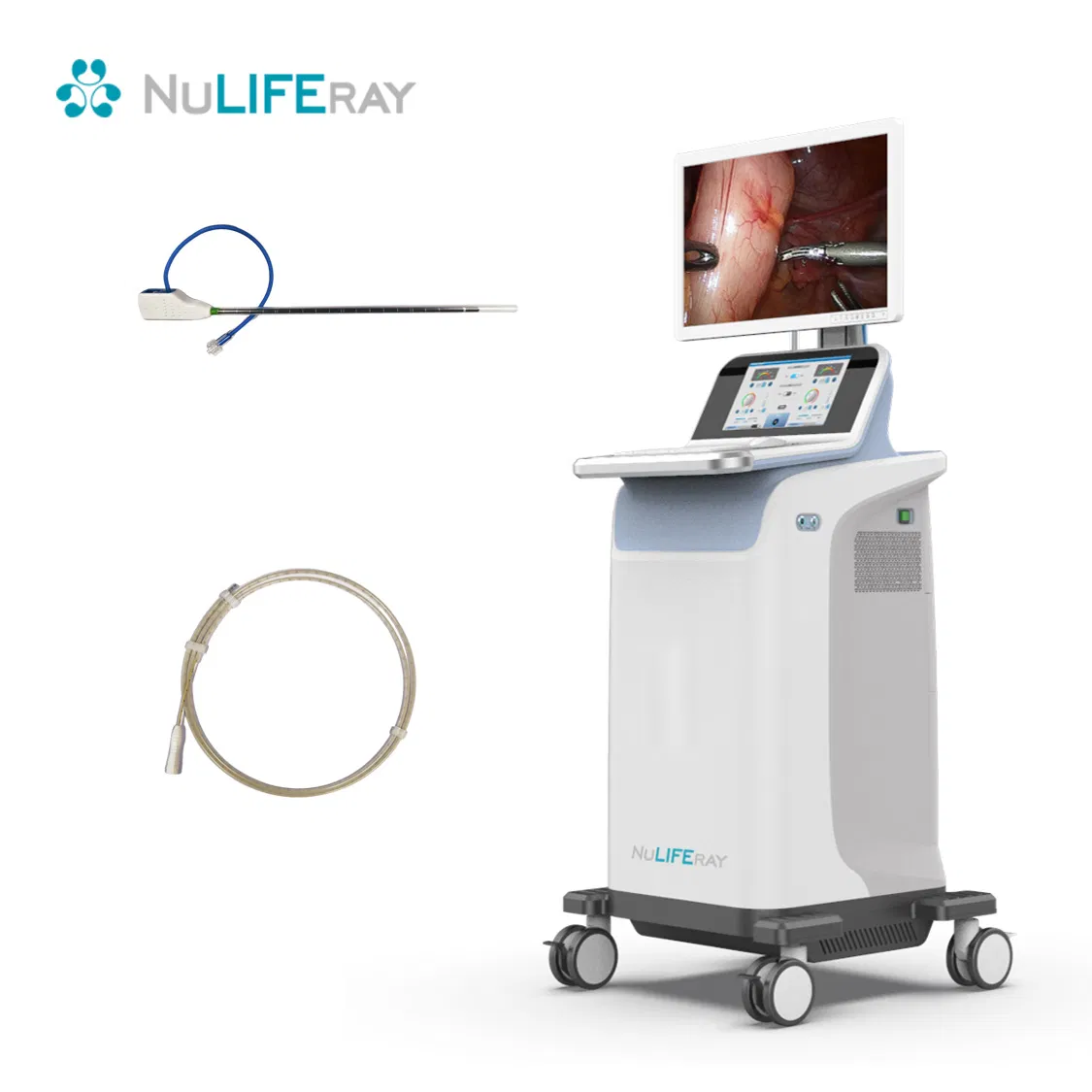

Microwave ablation is a recent development in the field of hyperthermia, using image-guided ablation. The antenna is introduced into the tumor tissue, and the microwave is transmitted through the ablation antenna. Dipole molecules and proteins in the local tissue oscillate at extremely high frequencies, causing local intense heat. This coagulation causes nucleus and chromatin coagulation, protein coagulation, and cell chromosome abnormality, leading to induced cell death.
| Project | Content |
|---|---|
| Working Frequency | 2450MHz±50 MHz |
| Output Power | Set arbitrarily within the range of 0W to 100W |
| Input Power | 1500 VA |
| Treatment Time | Set arbitrarily within 0min to 30min |
| Control Method | Foot pedal, panel button, and emergency stop button control |
| Equipment Leakage | Cabinet microwave leakage < 10mw/cm² |
| Protection Function | Control temperature < 45°C through water-cooled circulation system |
| Temperature Range | 20-100 ºC, with an error of ± 1.5 ºC |
| Applicable Departments | Oncology, General surgery, Intervention department, Hepatobiliary surgery, Vascular surgery, Orthopedics. |
| Scope of Application | Physical tumors: Hepatoma, Lung tumors, Kidney tumors, Thyroid nodules, Lower limb vein song. |

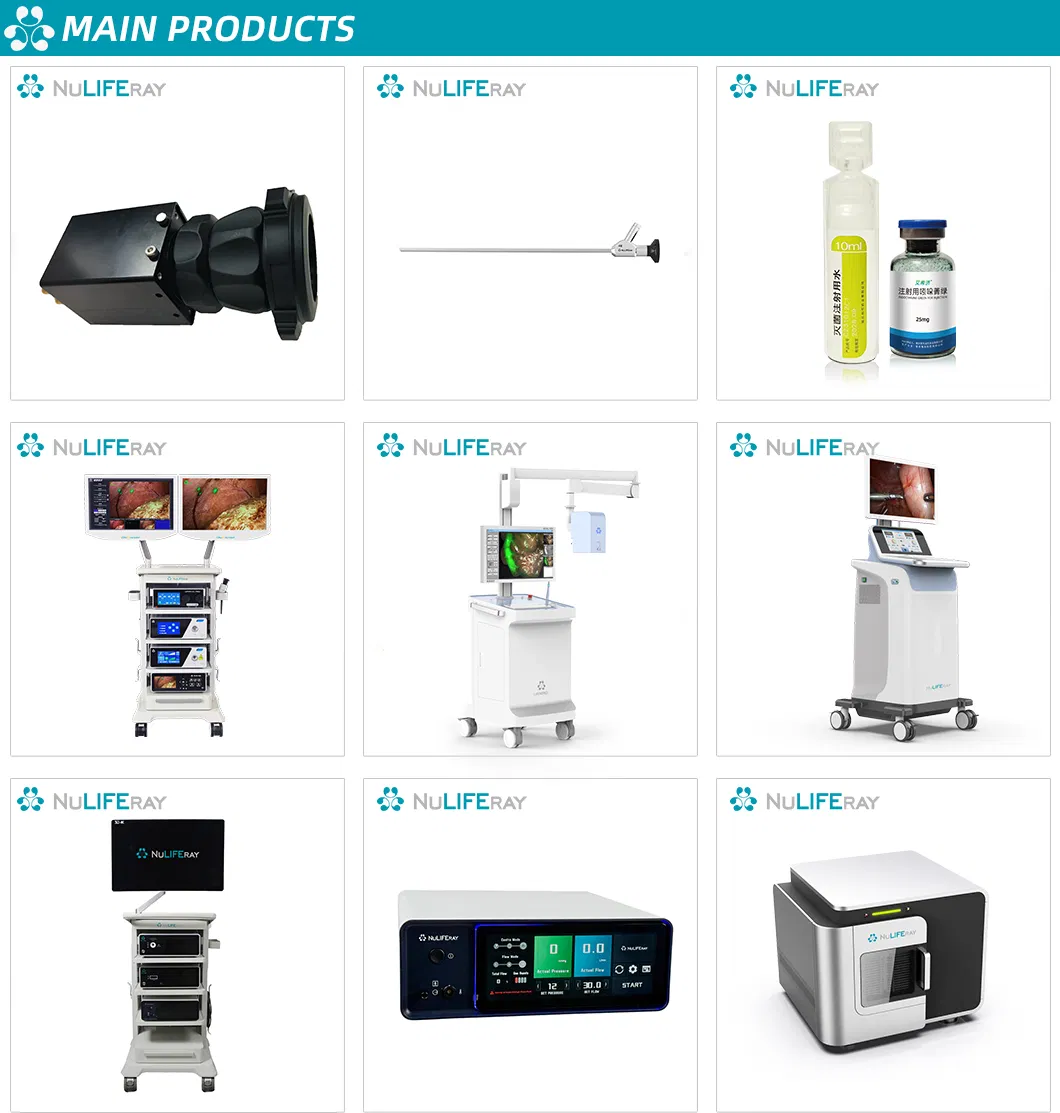

Our solutions include research, development, and production of high-end medical devices such as fluorescence imaging series, fluorescence contrast agents (ICG, targeted series), and core modules (CMOS cameras, endoscopes). These products are utilized in over 500 large hospitals.
Founded in 2011, the company focuses on core technologies such as molecular fluorescence, Raman spectroscopy, AI, and computer-aided drug molecular design (CADD). As a specialized "little giant" enterprise, it holds 131 core invention patents and 7 US invention patents.
