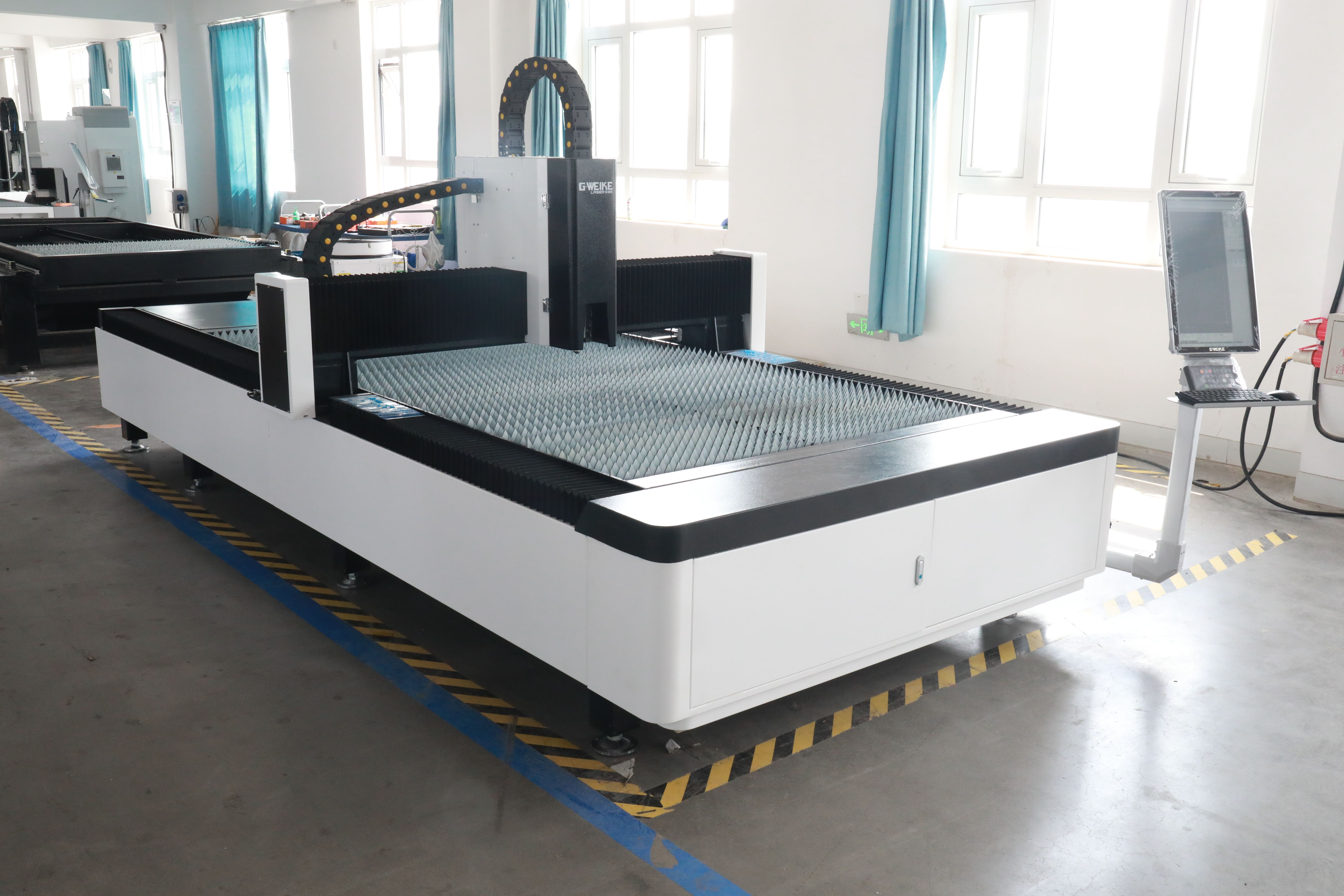

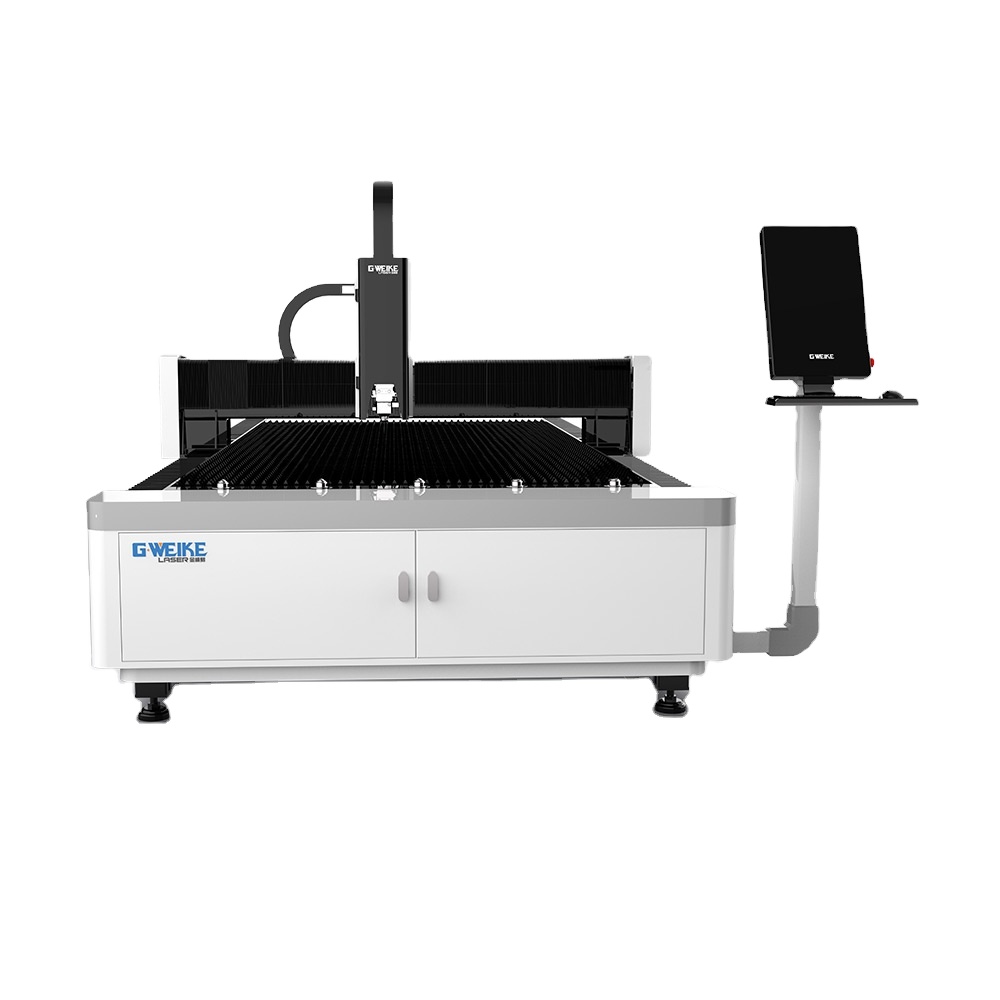

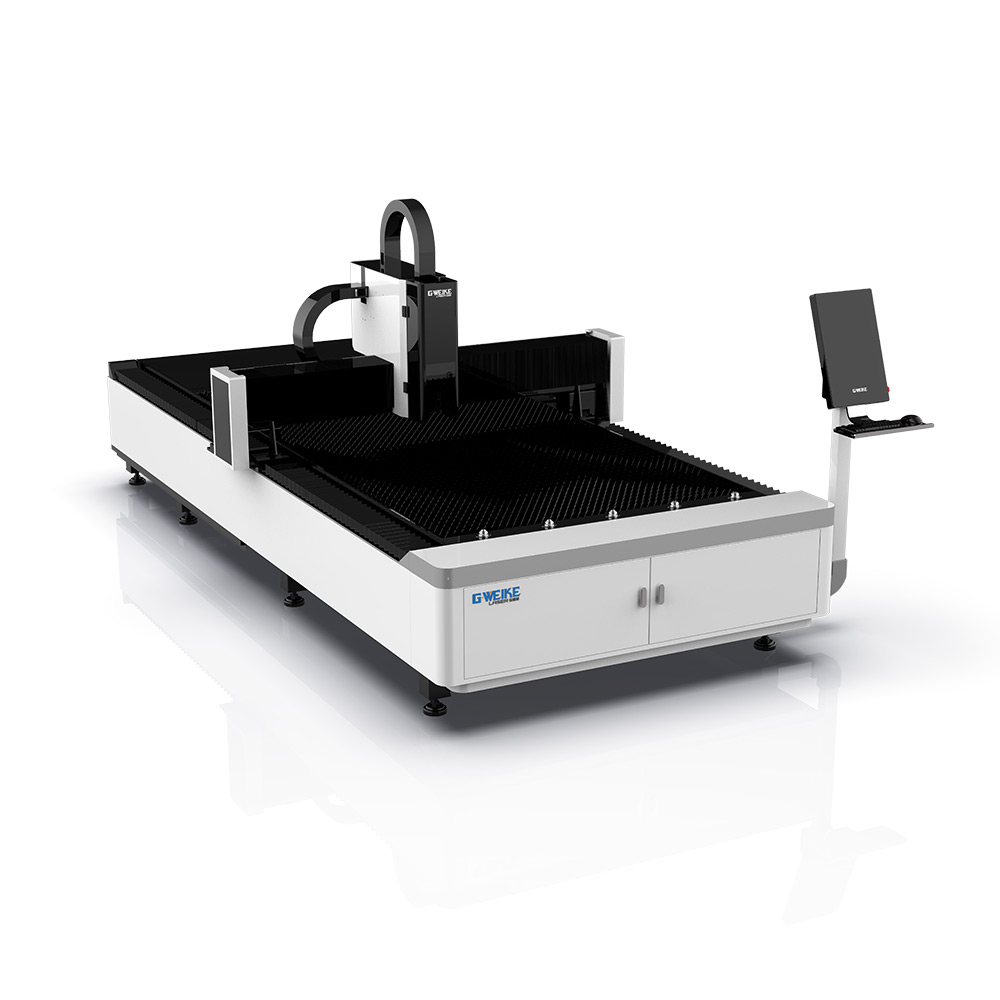

| Machine Model | LF3015E PRO |
| Laser power | 1000w / 1500w (OPTIONAL) |
| Working area | 3000*1500mm |
| Laser source | Raycus / IPG |

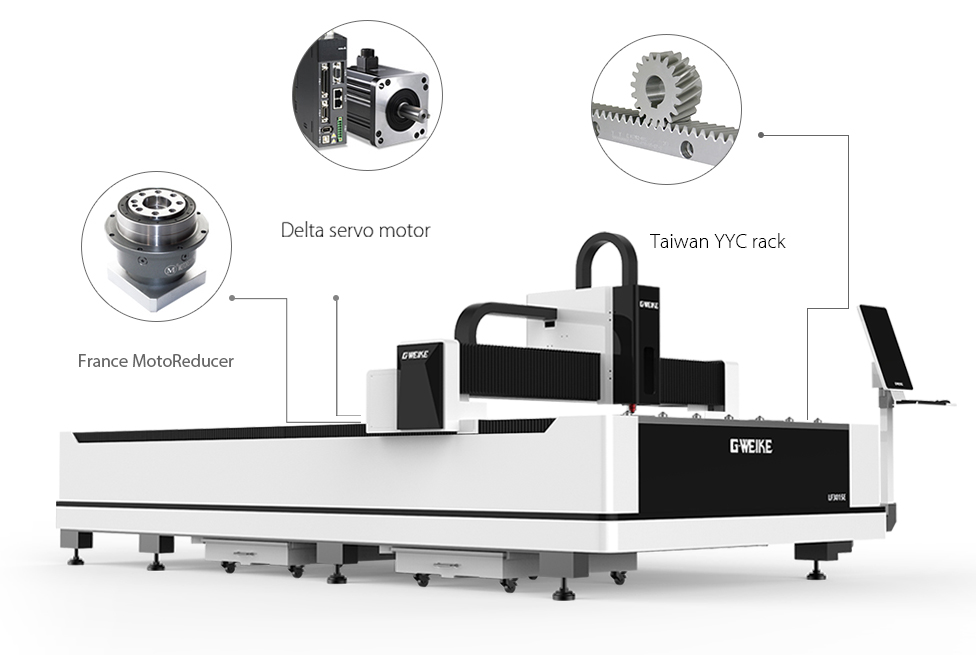

| Motor and driver | Delta servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Max speed | 60m/min |
| Max acceleration | 1G |

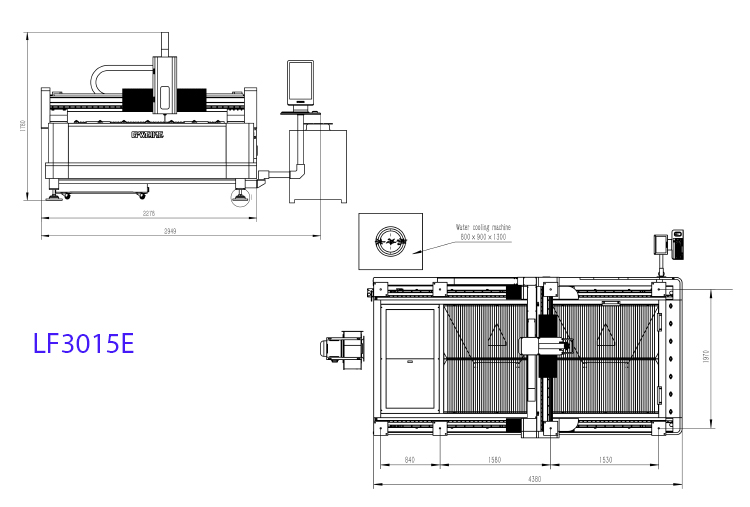

| Dimensions | 4600*2450*1700mm |
| Voltage and frequency | 380v 50hz/60hz/60A |

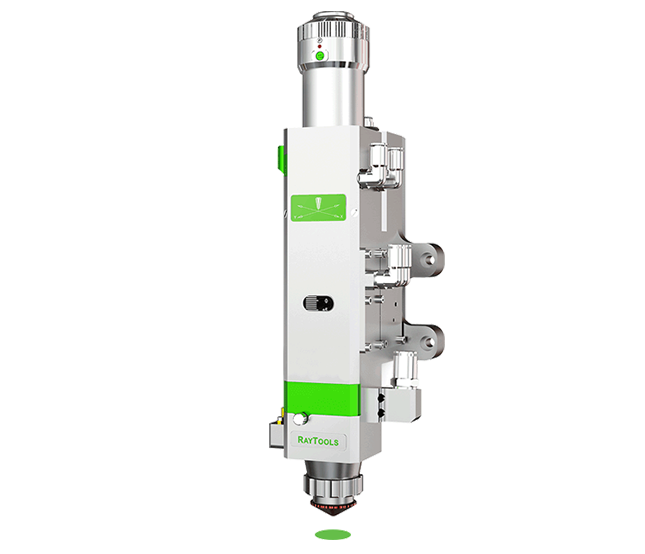

Automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. Ten times faster than manual adjustment.
Adjustment range: -10 mm ~ +10mm, precision 0.01mm.
Cooling: Collimator and focus lens both have water-cooling heat sink.

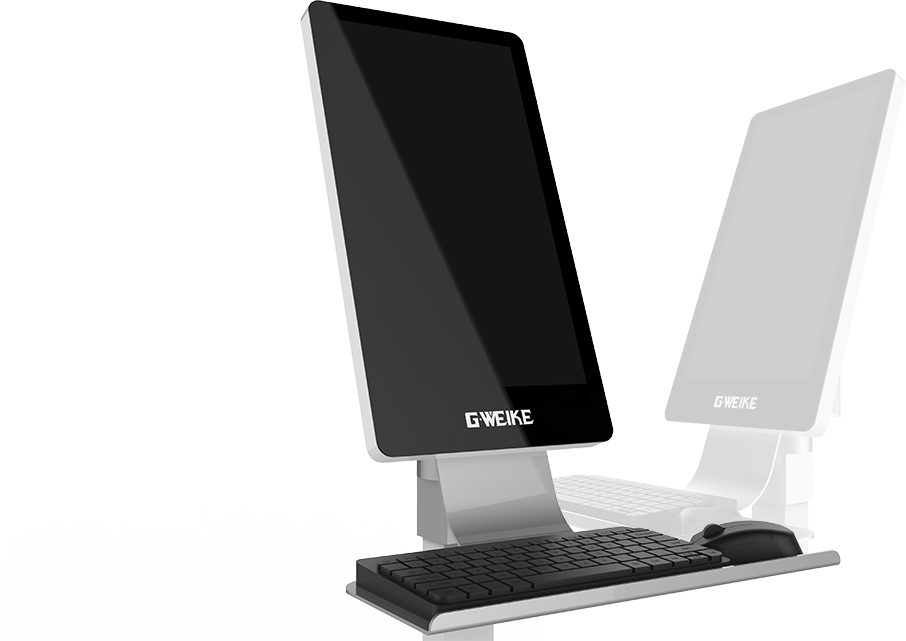

Has a vertical screen display, good response speed, higher contrast, wider view, low power consumption as well as high resolution.
Possesses high brightness levels and lower reflectivity as well as solid glass panel sturdiness and durability.

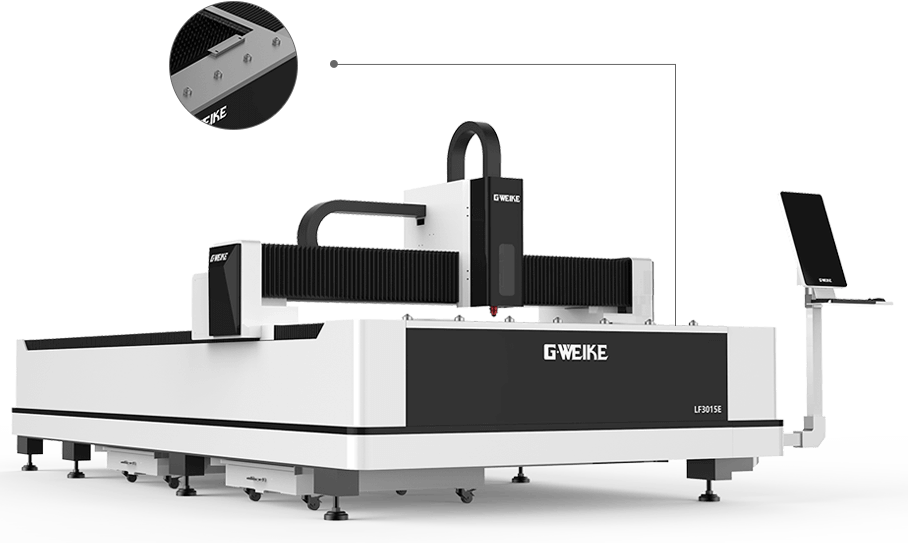

The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine's surface.
Aerospace standards, formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6.
Light weight, corrosion resistance, anti-oxidation, and low density for high-speed precision.

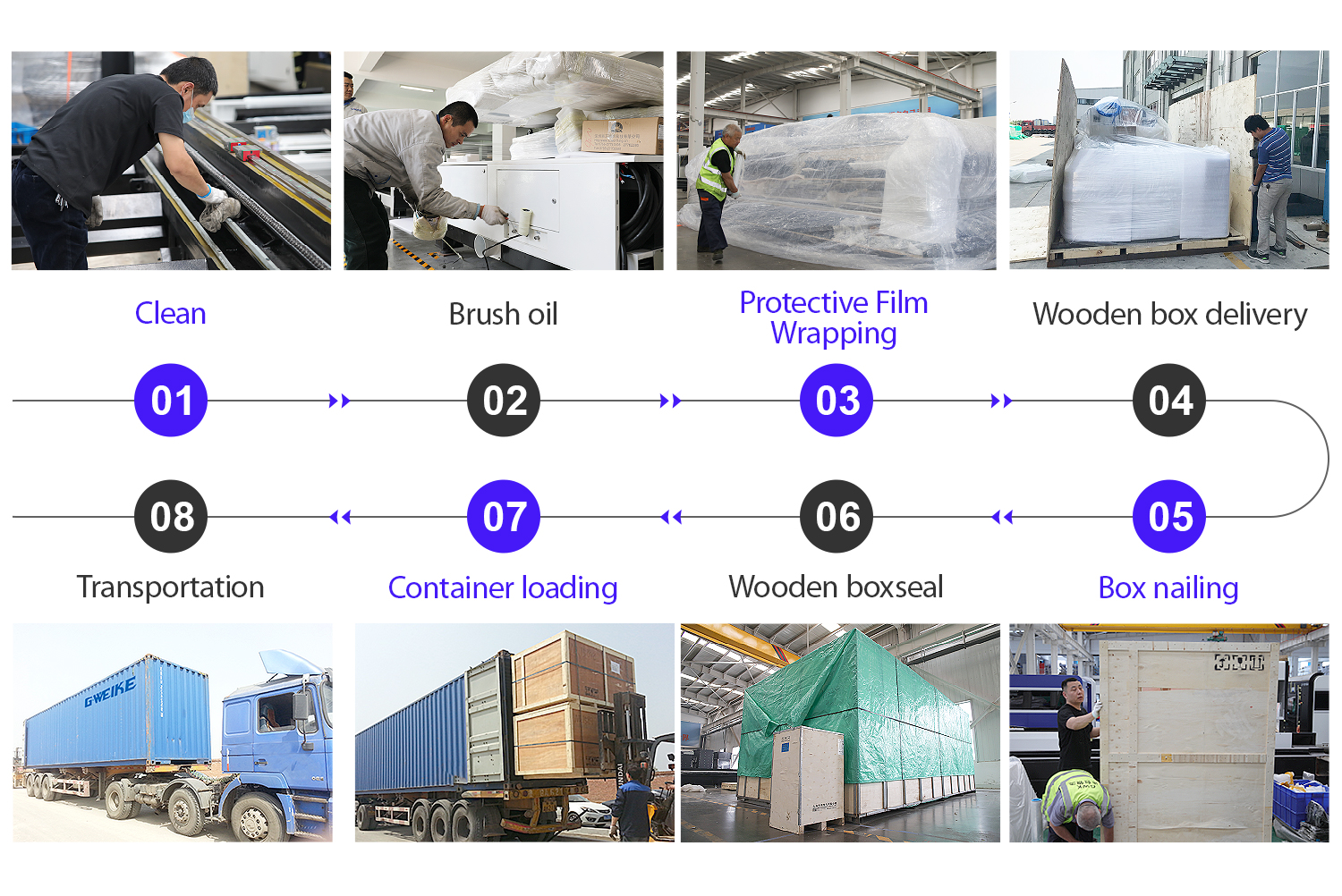

1. Anti-collision package edge: All parts are covered with soft materials (pearl wool).
2. Fumigation wooden box: Saving transport time with pre-fumigated wood.
3. Whole film packaging: Avoids damage, water, and rust during delivery.
4. Delivery Detail: Shipped in 20-30 working days after payment.
