MDR Certified 1064nm&532nm Picosecond Qswitch ND Yag Laser/ QSwitch Nd YAG Q Switch Nd Yag Laser for Tattoo Removal

Product Description

What is Picosend Laser?

The Pico Laser uses ultra-short pulses (one trillionth of a second in length) through a beehive lens to hit the melanin with great pressure, causing it to shatter into tiny dust-like particles. Because the particles are so small, they are more readily absorbed and eliminated by the body.

Meanwhile, the shockwave penetrates deeply into the Dermis layer, stimulating skin collagen to regenerate, resulting in better clearance of melanin and fewer treatments overall.

Pico Laser Device
Device Design
Brand New Design

Fresh appearance: Smooth lines and modern aesthetics.

⚖️ Lightweight: 35% smaller and significantly easier to move.

🦾 Ergonomic Push Handle: Smooth corners, anti-cutting comfortable grip.

🔇 Silent Wheel: Effortless movement without noise.

Fashion Light Strips: Instant illumination upon startup for enhanced visual recognition.

Ergonomic details
Actual Principle of Picosecond Laser Tattoo Removal

The core principle is using ultra-short pulses of light to shatter tattoo ink particles into dust so tiny that the body can remove them easily.

The Revolution: Picosecond Technology

  • Pulse Duration: Trillionths of a second (ps). 1,000 times faster than nanosecond lasers.
  • Photomechanical Shattering: Extremely fast pulses avoid heating surrounding skin.
  • Vaporization: Like hitting glass with a lightning-fast hammer, breaking ink into microscopic dust.

Older Technology (Nanosecond Lasers)

  • Mechanism: Primarily photothermal action (heat-based).
  • Risk: High residual heat damages surrounding tissue.
  • Recovery: Increased risk of scarring and longer recovery times.
Comparison 1
Comparison 2
3 Wavelength Therapy

532nm: For pigmentation, light spots, red, coffee, brown tattoos, and birthmarks.

755nm: Honeycomb design for pigmented lesions and face speckle removal.

1064nm: For all dark spots and black, blue, and green tattoos.

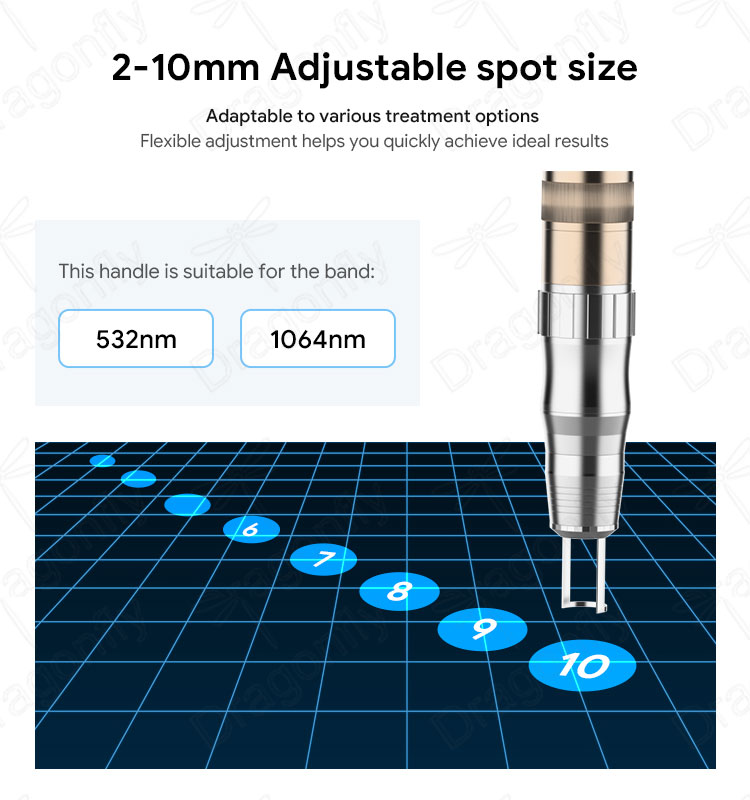

Adjustable Spot Size: 2mm to 10mm range to meet different treatment needs flexibly.

Wavelength treatment

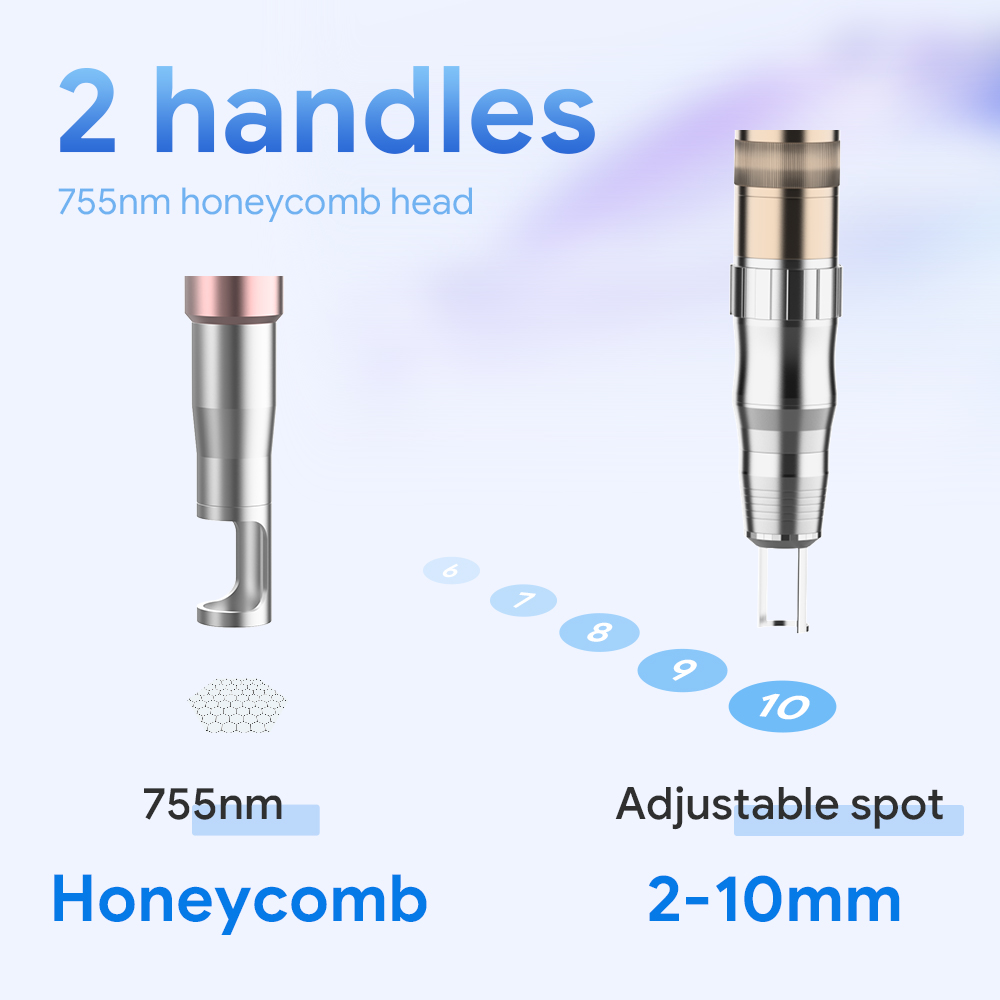

Handpiece
Honeycomb Probe
Advanced Technical Configuration
💎

Imported Laser Modules: Easily achieve pulse widths of 350ps or shorter. Ensures peak power and pulse width stability.

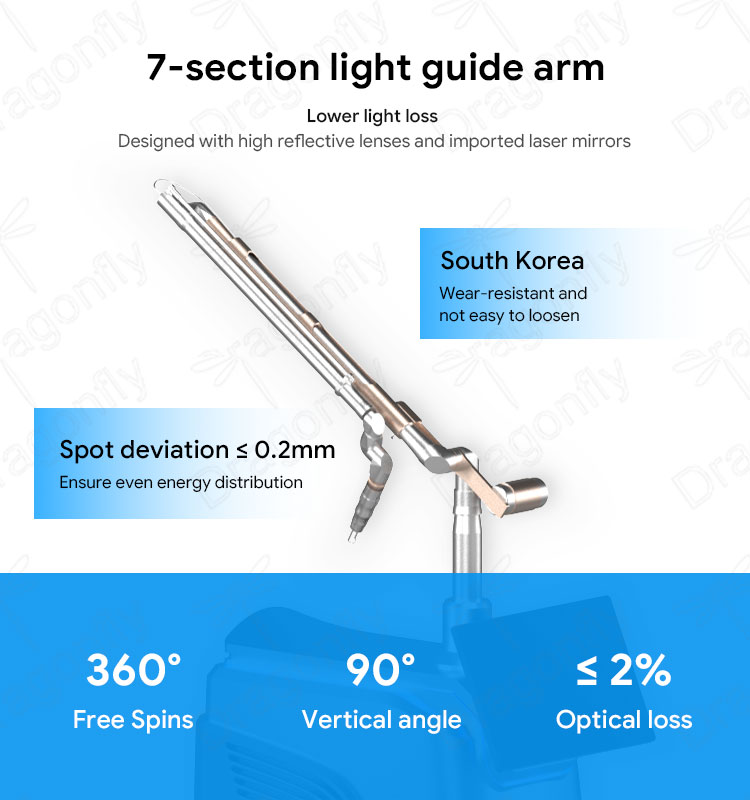

7-Joint Light Guide Arm: Imported from South Korea, providing flexible and accurate irradiation to various angles and hard-to-reach areas.

Management System: Excellent heat dissipation and energy management for all-weather treatment needs.

Laser Modules
7-joint arm
Internal Structure
Technical Specifications
Product NamePermanent Tattoo Removal Picosecond Laser
Wavelength532nm / 1064nm / 755nm
Single Pulse Energy1000mj (1064nm); 800mj (532nm)
Pulse Width550ps
Frequency1-15Hz
Spot Size2-10mm Adjustable
Aim BeamRed Diode Laser
Beam Transmission7-Joint Light Guide Arm
Wattage2000W
VoltageAC 220/110V±10%, 50/60Hz
Professional Equipment
Clinical Results
Application

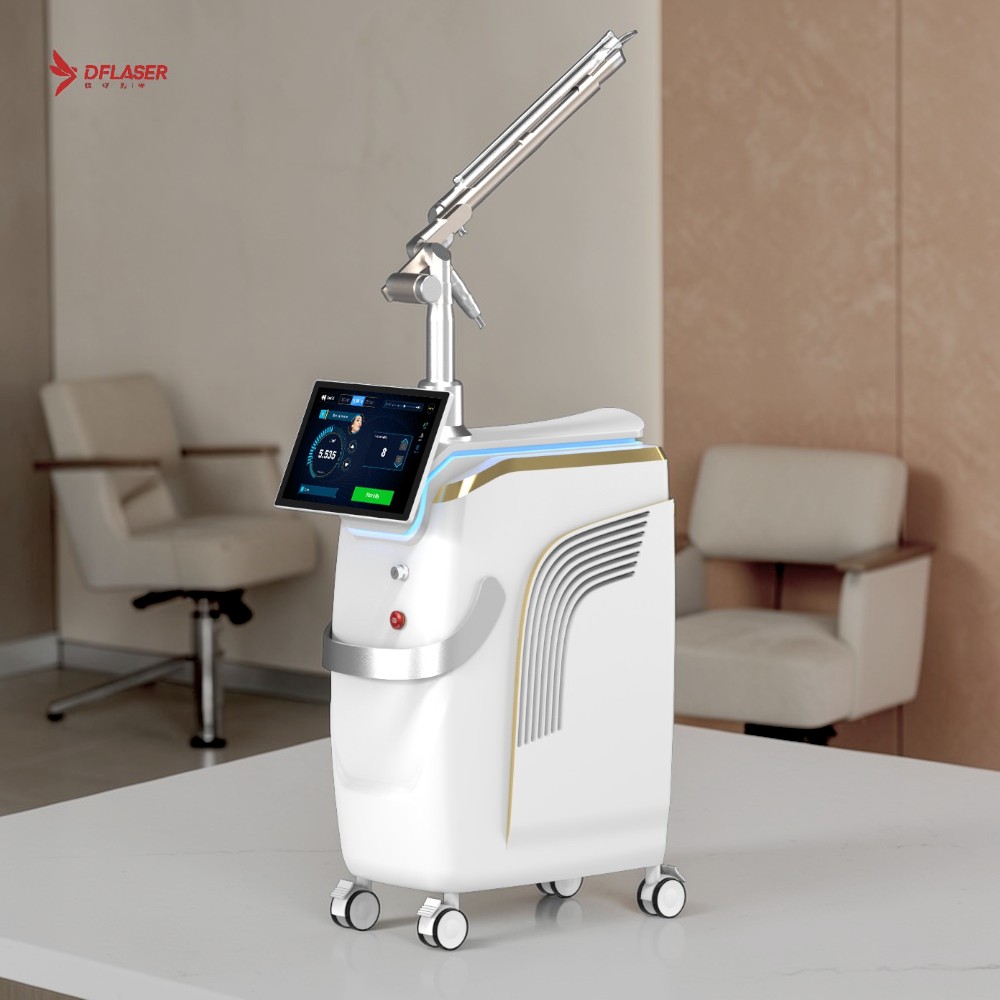

Full System Display
Frequently Asked Questions
How does Picosecond laser differ from traditional lasers?
Traditional nanosecond lasers use heat (photothermal) to break down ink, which can damage surrounding skin. Picosecond lasers use ultra-short pulses to create a photomechanical effect, shattering ink into smaller particles with minimal heat and faster recovery.
What skin conditions can the 755nm Honeycomb probe treat?
The 755nm Honeycomb probe is specifically designed for pigmented lesions, facial speckles, and spot removal, providing professional-grade results for skin repair.
Is the treatment spot size adjustable?
Yes, the instrument features an adjustable spot size ranging from 2mm to 10mm. This allow for precise targeting of small spots or efficient treatment of larger skin areas.
Why is the 7-joint light guide arm important?
The South Korean imported 7-joint arm provides maximum flexibility, allowing the laser to reach various angles and body parts accurately while maintaining high energy transmission efficiency.
What colors of tattoos can this machine remove?
With three wavelengths (532nm, 755nm, 1064nm), it can treat a full spectrum of colors, including red, coffee, brown, black, blue, and green tattoos.
How stable is the power output during long treatments?
The system utilizes high-power imported laser modules and an advanced energy management system with excellent heat dissipation to ensure stable peak power and pulse width throughout all-weather operations.
