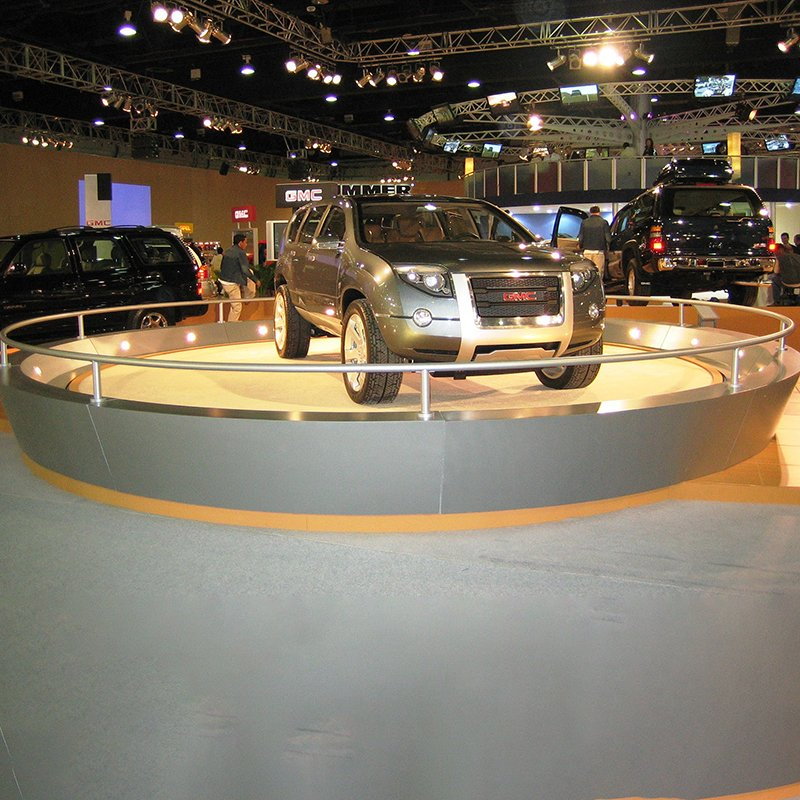

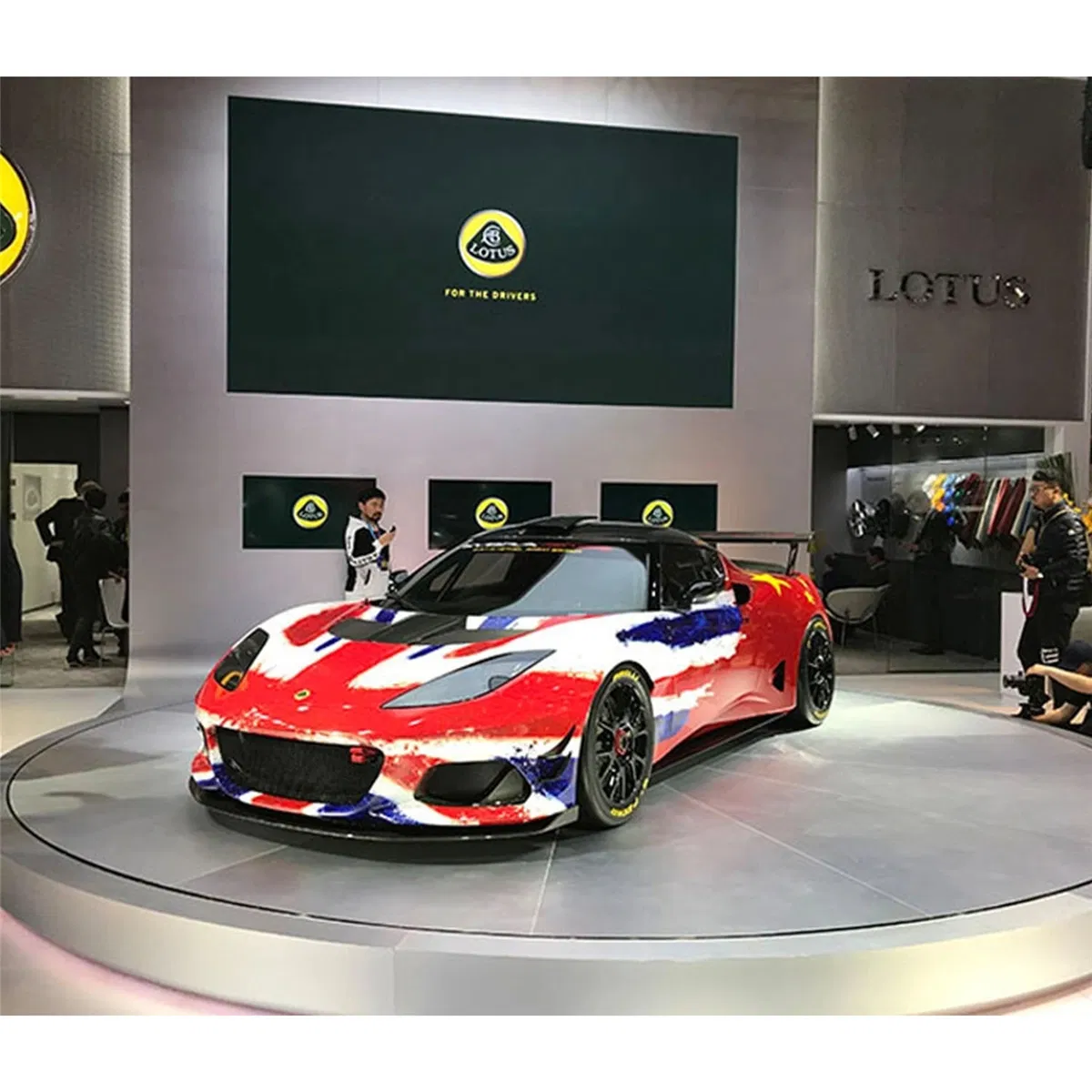

Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options
1 / 5
Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options
Multi-Function Car Turntable with Integrated Lighting and Sound Options

Multi-Function Car Turntable with Integrated Lighting and Sound Options

Customization: Available
Control Type: Remote Control
Diameter: Tbd
Send Inquiry

Product Description

i

Basic Information

Model NO.
ZX/ZM
Power Source
Electric
Rotation Speed
1~2 Rpm
Type
Motorized Rotating Platform
Weight Capacity
4000kg
Height
305mm (Without Top)
Motor Power
0.75W Motor and Gearbox with CE
Power Required
1 Phase 110V AC ~ 240V AC
Drive Position
Patent Pin Gear Drive System
Warranty
2 Years
Car Turntable Banner
★

Product Description

New Car Turntable: Sleek, Customizable, and Stunning

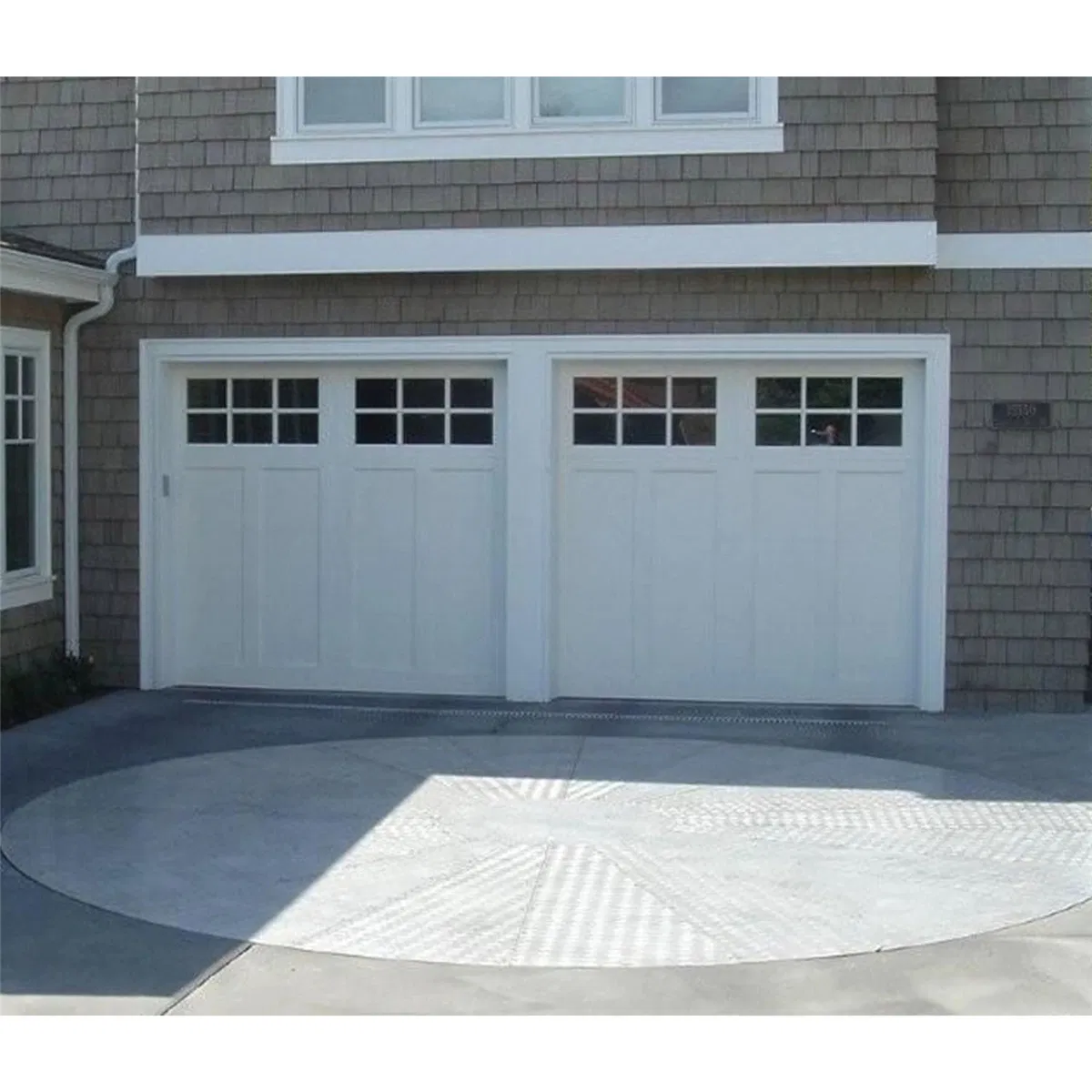

Designed specifically for driveways and garages, this low-profile turntable stands at just 330mm in height. It offers unmatched convenience by allowing users to pour concrete or bricks on top, creating a seamless surface that matches the surroundings perfectly.

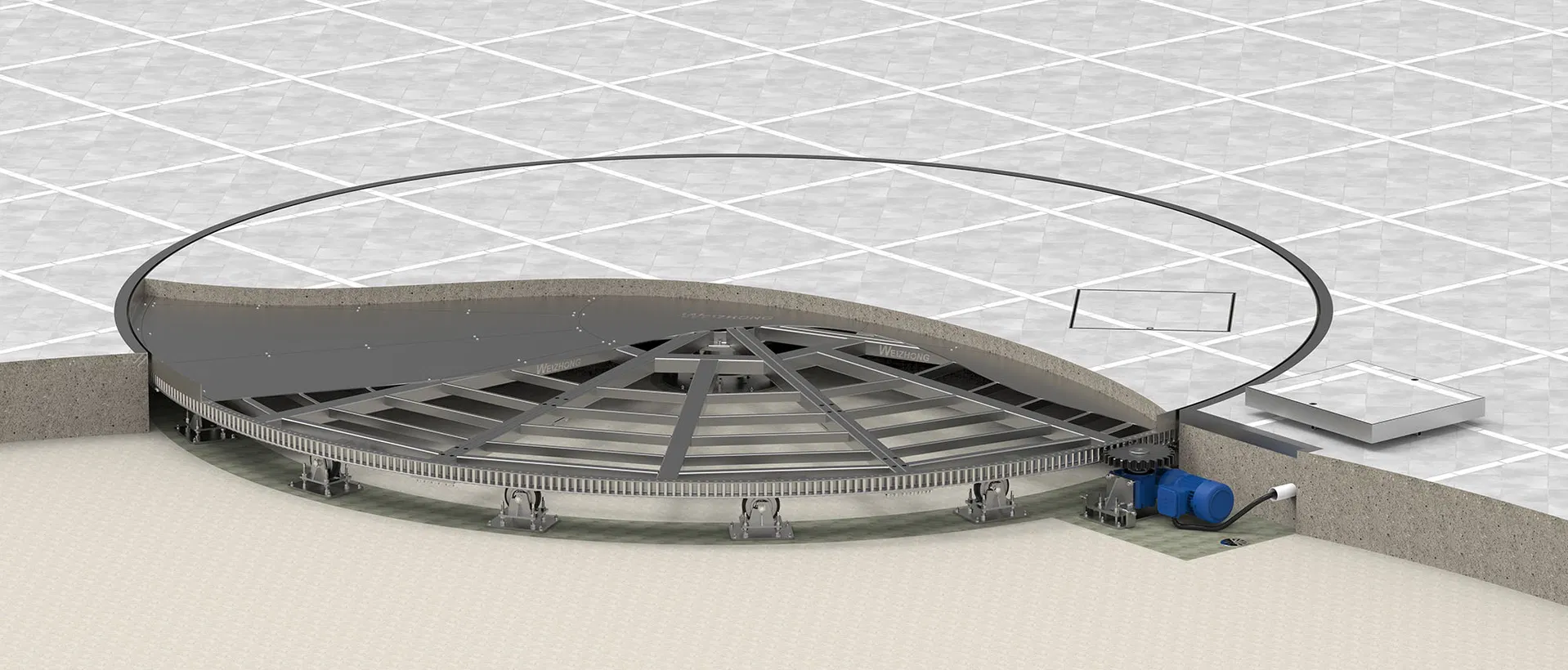

Car Turntable Design
Diameter Load Capability Rotation Speed Motor Power Height
4.0 - meter6,000 kg0.2 - 1.0 RPM1.1 kW330mm
4.5 - meter7,000 kg0.2 - 1.0 RPM1.1 kW330mm
5.0 - meter7,500 kg0.2 - 1.0 RPM1.1 kW330mm
5.5 - meter8,000 kg0.2 - 1.0 RPM1.1 kW330mm
6.0 - meter9,000 kg0.2 - 1.0 RPM1.1 kW330mm

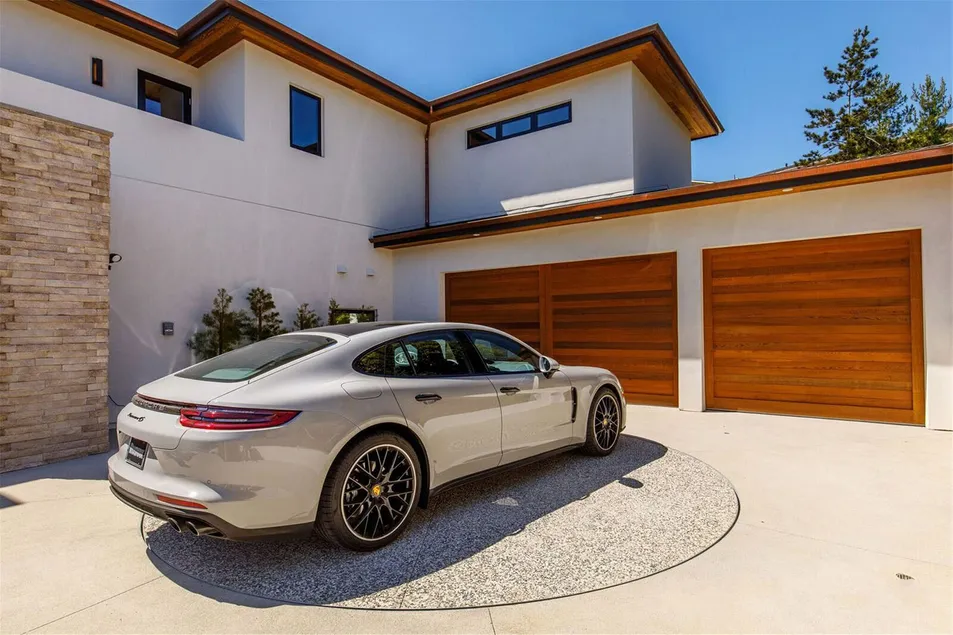

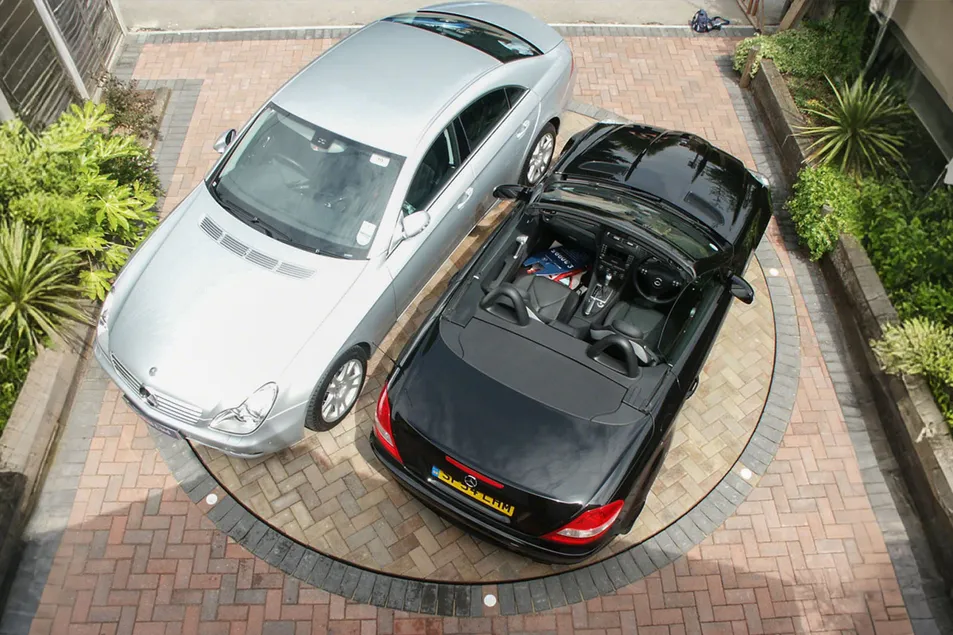

Concrete Top Option Bricks Top Option
⚙

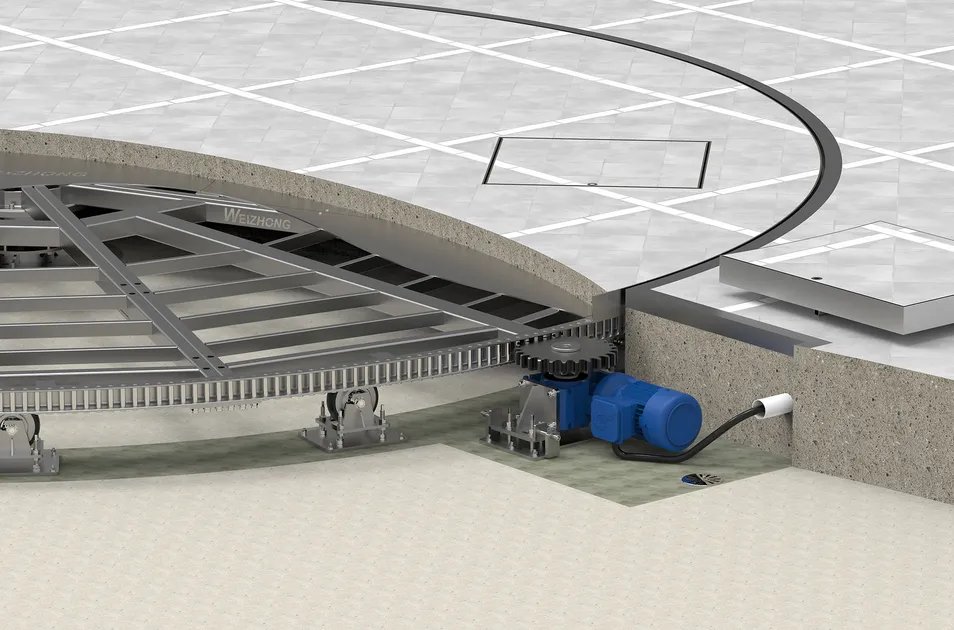

Innovative Pin-Gear Drive

The patented Pin-Gear Drive system guarantees smooth, reliable rotation with minimal wear. This advanced technology optimizes torque and power transfer, allowing a 6-meter turntable to support up to 9,000 kg using just a 1.1 kW motor.

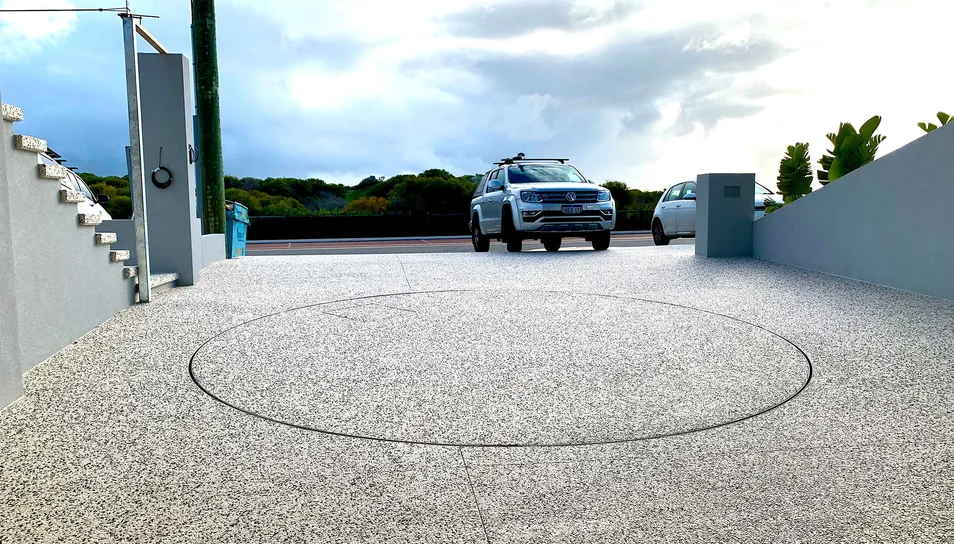

Pin-Gear Drive Mechanism Driveway Installation
✔

Company Capability

Operating since 1991, the manufacturer specializes in revolving restaurants, car turntables, and industrial platforms. Capable of producing diameters from 3-meter to 60-meter with load capacities up to 1,000 metric tons.

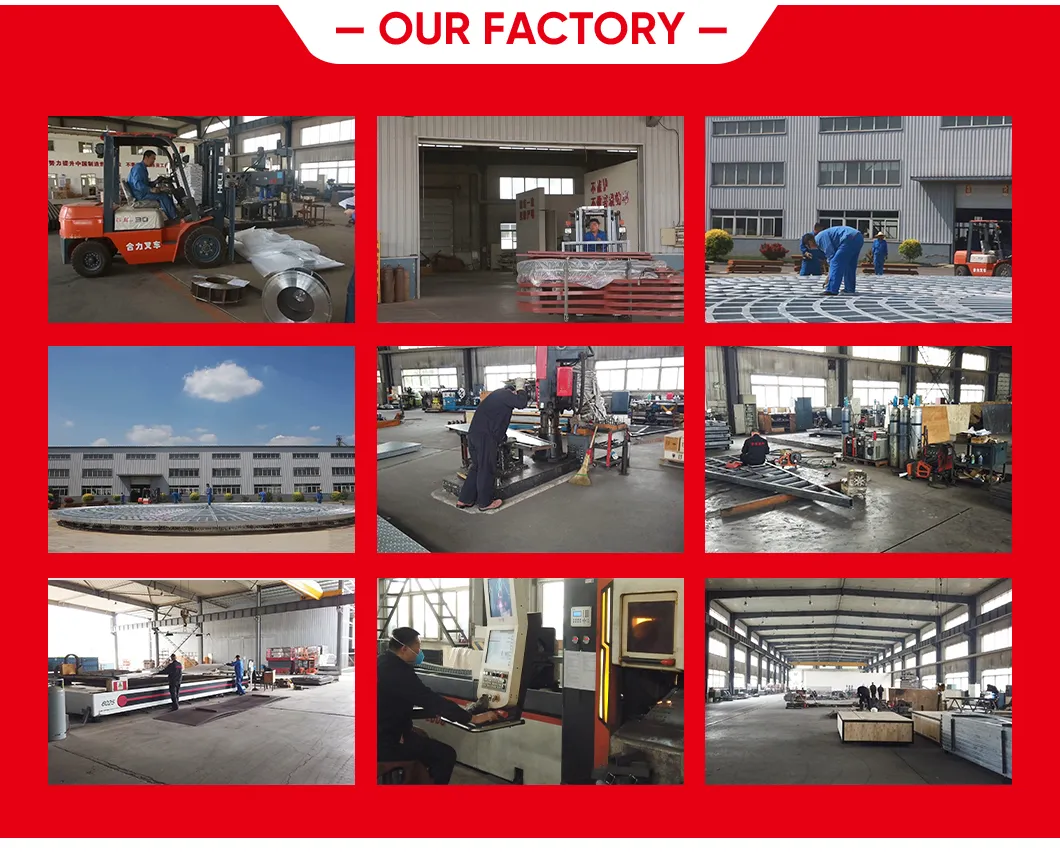

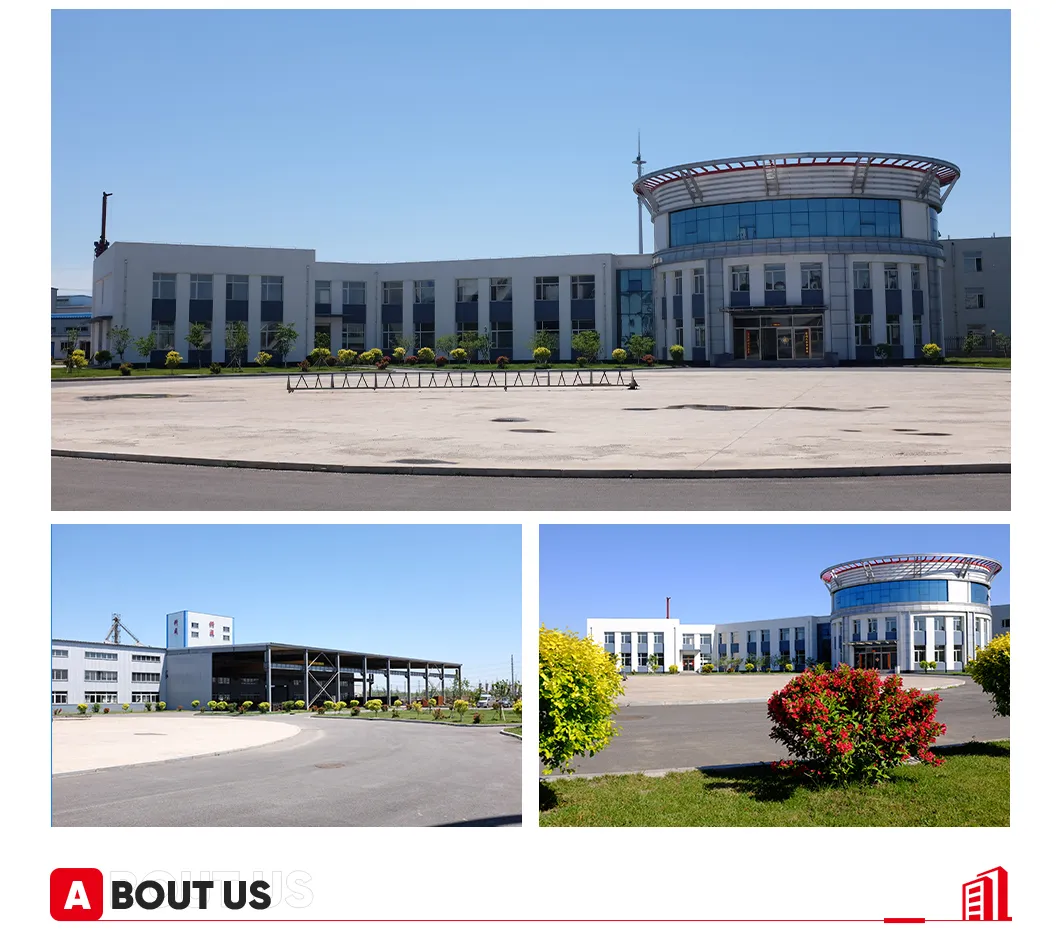

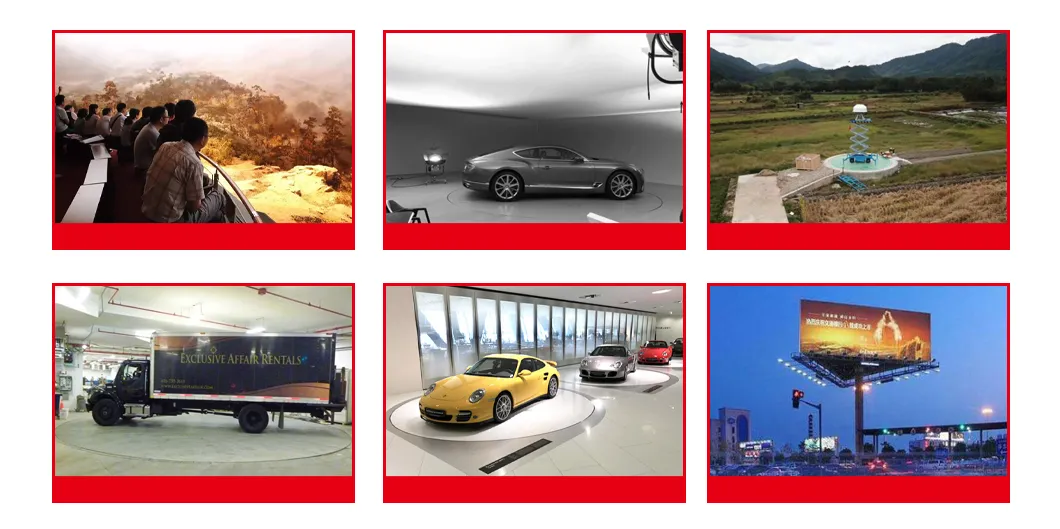

Manufacturing Facility Turntable Production Product Range
▩

Certifications & Shipping

Quality Certifications Professional Packaging
?

Frequently Asked Questions

What is the Pin-gear drive mechanism?
It is a special form of fixed axle gear transmission using a pin wheel with cylindrical teeth, offering a simple structure, easy processing, and superior durability compared to general gears.
What are the advantages of the pin-gear system?
It eliminates friction wheel slip and the need for periodic spring adjustments. It maintains high precision rotation and has fewer moving parts to maintain.
What is the maximum load capacity available?
We can manufacture turntables capable of accommodating loads ranging from 500 KG to 1,000 metric tons.
What sizes of turntables can be produced?
The diameter can range from 3 meters up to 60 meters depending on the application requirements.
Is the turntable surface customizable?
Yes, the ZX-W330 model allows you to pour concrete or place bricks on the top surface to match your existing driveway or garage floor.
What kind of maintenance is required?
Thanks to the Pin-Gear drive, the system experiences minimal wear and tear, requiring significantly less maintenance than traditional friction-drive systems.
