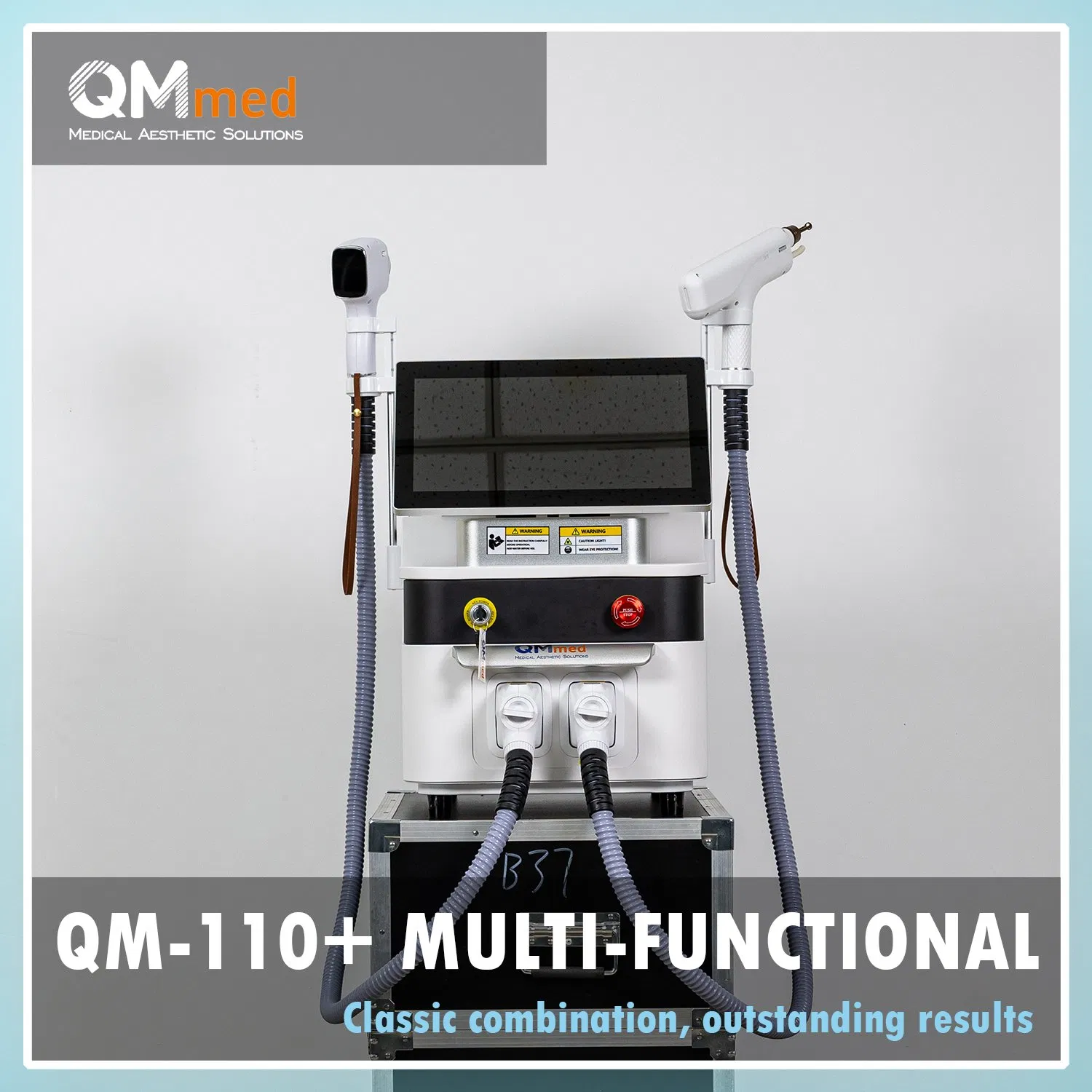

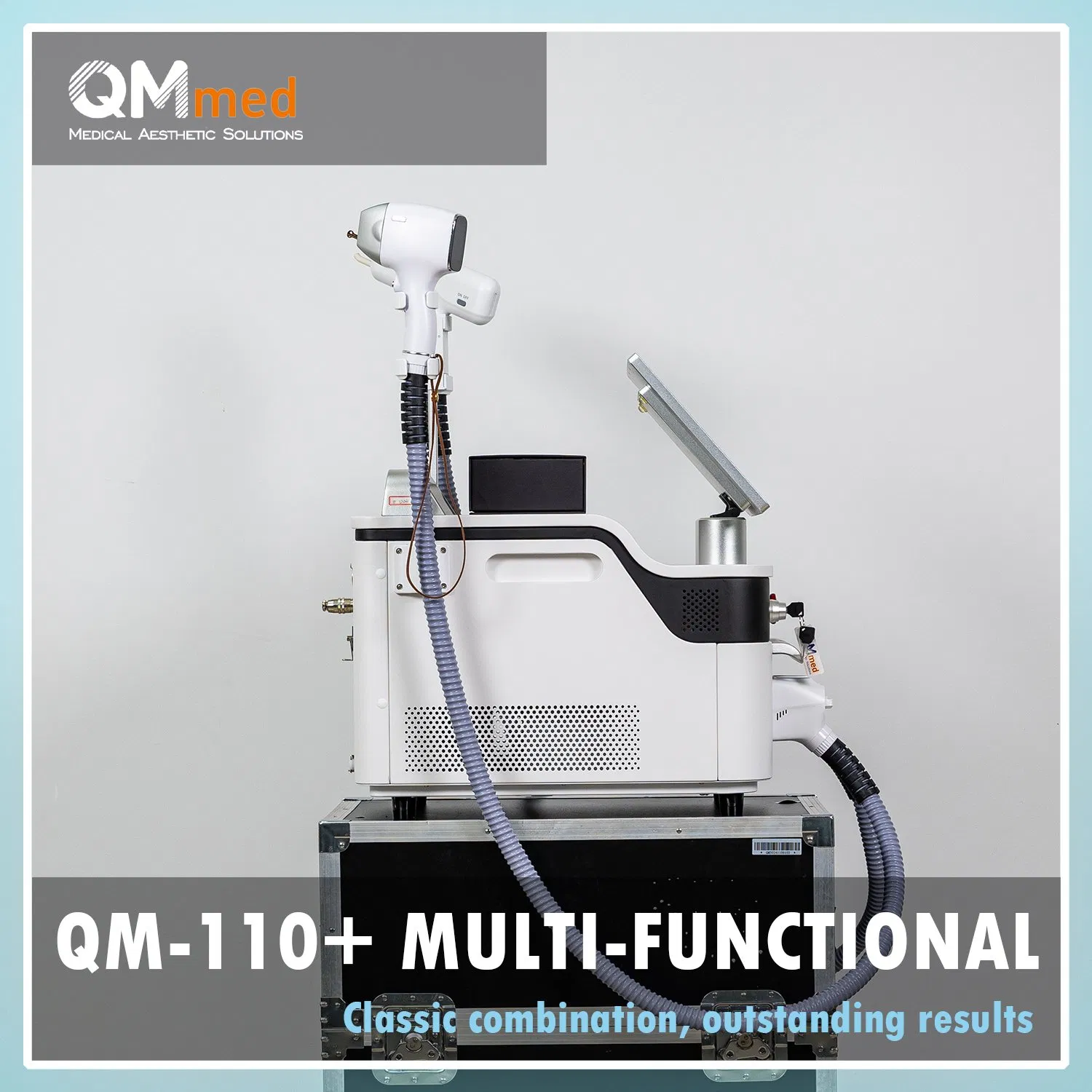

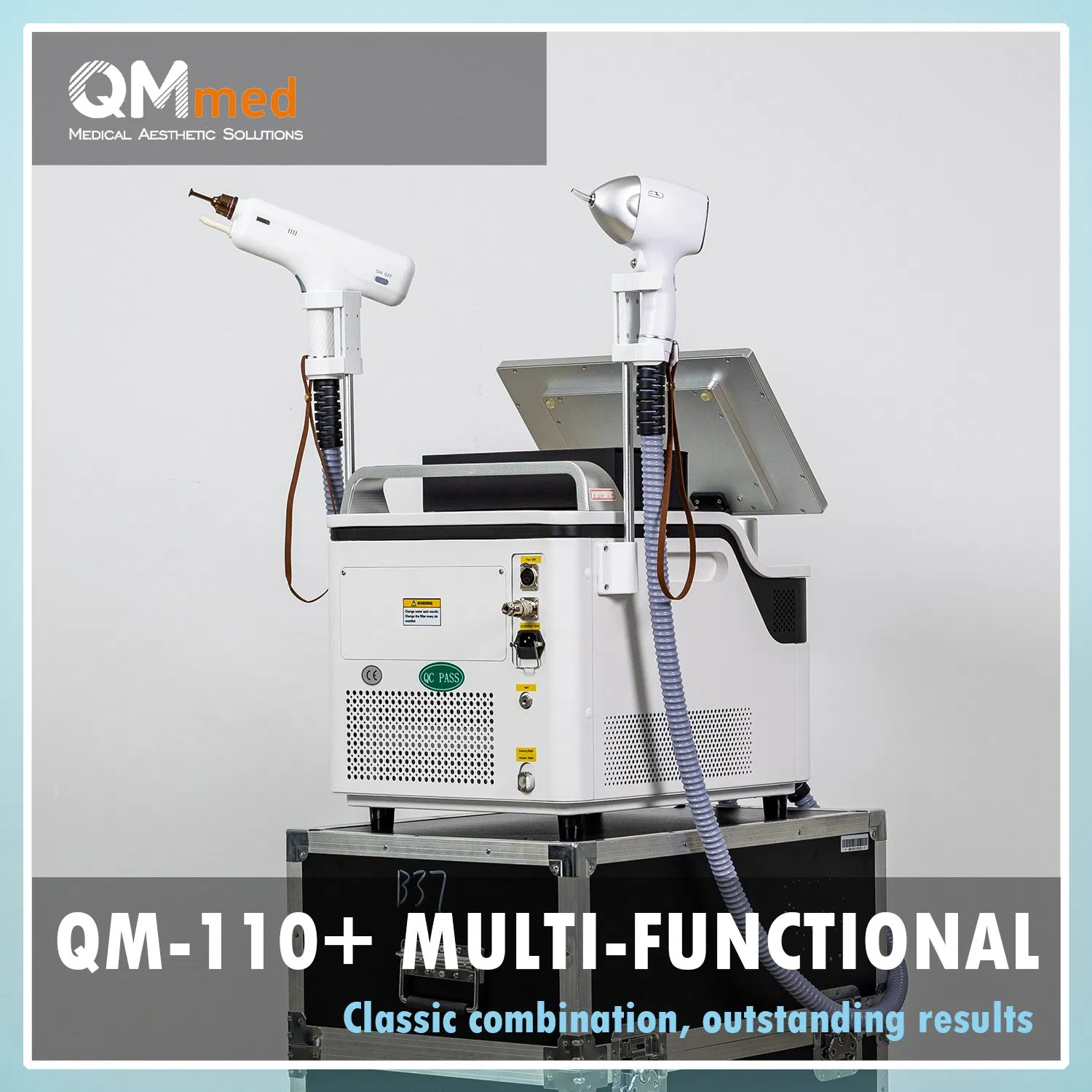

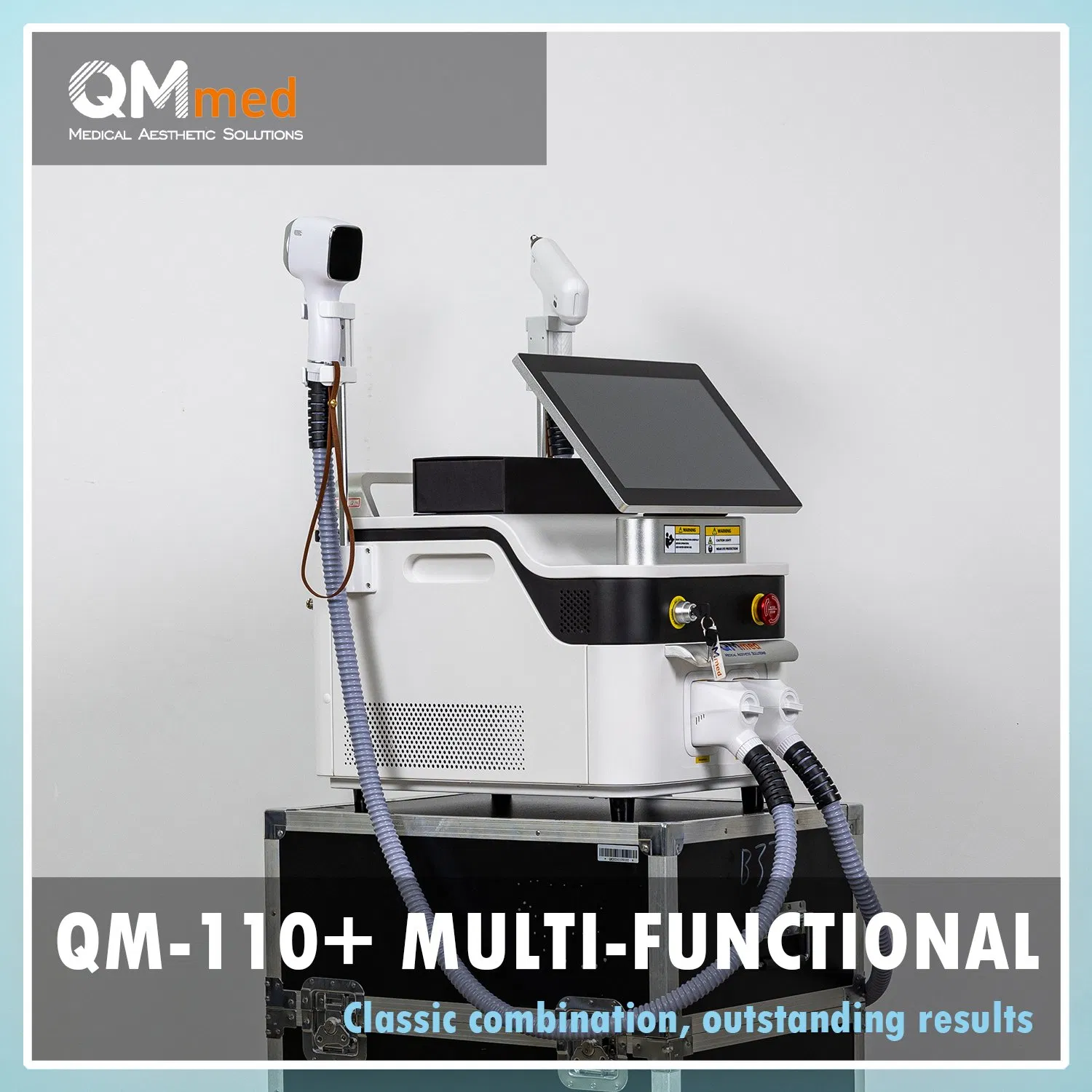

2 in 1 Multi Function Laser Platform Diode & Q-Switched ND: YAG Laser for Hair Removal & Tattoo Removal

Customization:	Available
Type:	Laser Beauty Equipment
Theory:	Laser

Technical Specifications

Application

Salon, Home

Portable

Frequency

1-10Hz

Cooling Level

1-5 Level

Cooling System

Air + Water + Wind + Tec + Sapphire Skin Contact

Operation

15.6 Inch TFT True Color Touch Screen

Power Supply

3000W

Laser Power

1000-1600W

Energy Max

1-100j/Cm²

Wavelength

808nm/940nm/1064nm/755nm

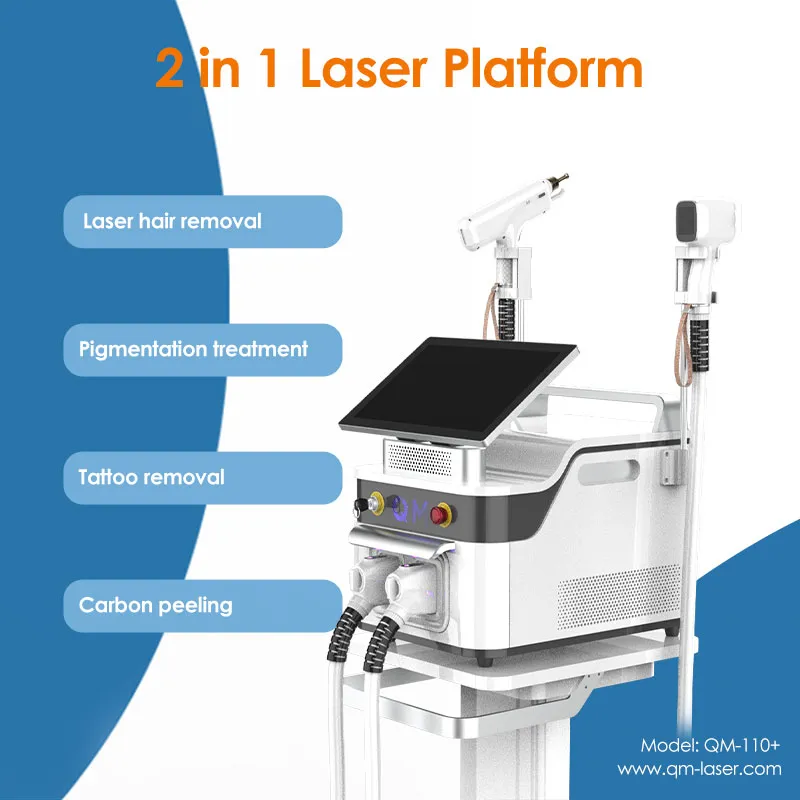

Multi Function Laser Platform

1Permanent Painless Depilation for all skin types.
2Skin Rejuvenation & Whitening.
3Tattoo & Pigment Removal (Black, Blue, Red, Brown).
4Eyebrow, Eyeliner, and Mole Removal.
5Freckle & Age Spot Removal.

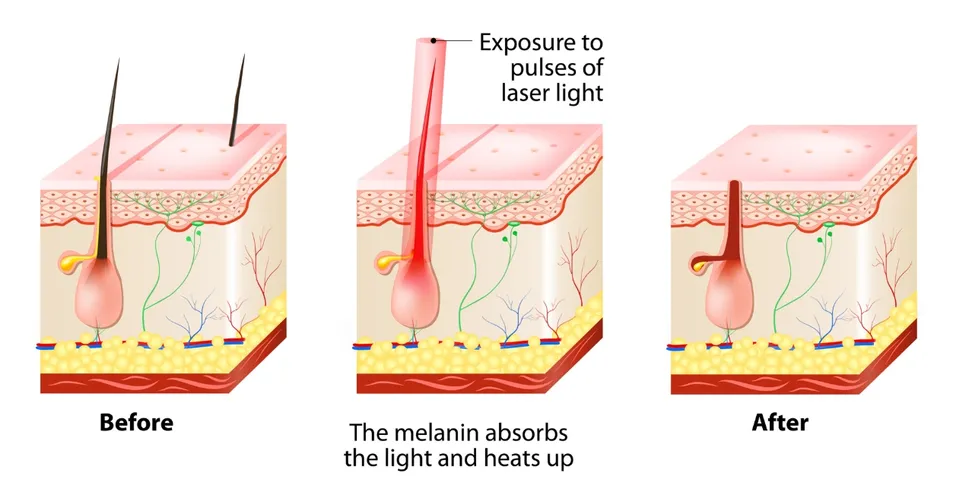

Diode Laser Technology

Diode laser hair removal technology is based on the selective dynamics of light and heat. It utilizes the gold standard 808nm technology, with energy penetrating deep into the dermis. The Sapphire Dual-Chill Tip ensures safety and comfort by eliminating heat effects during treatment.

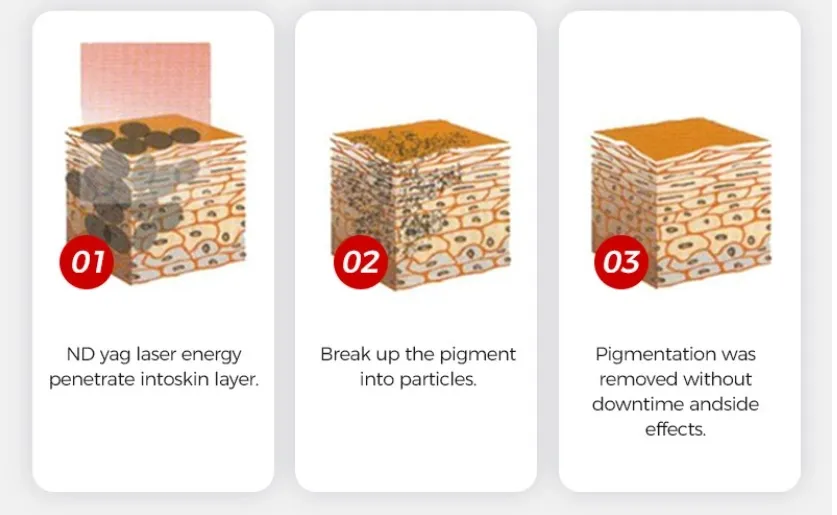

Q-Switched ND: YAG Laser Theory

The 1064nm wavelength shatters black and blue pigments, while the 532nm wavelength targets red, pink, and brown pigments. The ultra-short nanosecond pulse results in an instantaneous blast that shatters pigment particles into tiny fragments for natural metabolic removal.

System Advantages

Key Specialities:

● 4K Resolution 15.6-inch Touchscreen
● 360 Refrigeration Sheet Handle Cooling

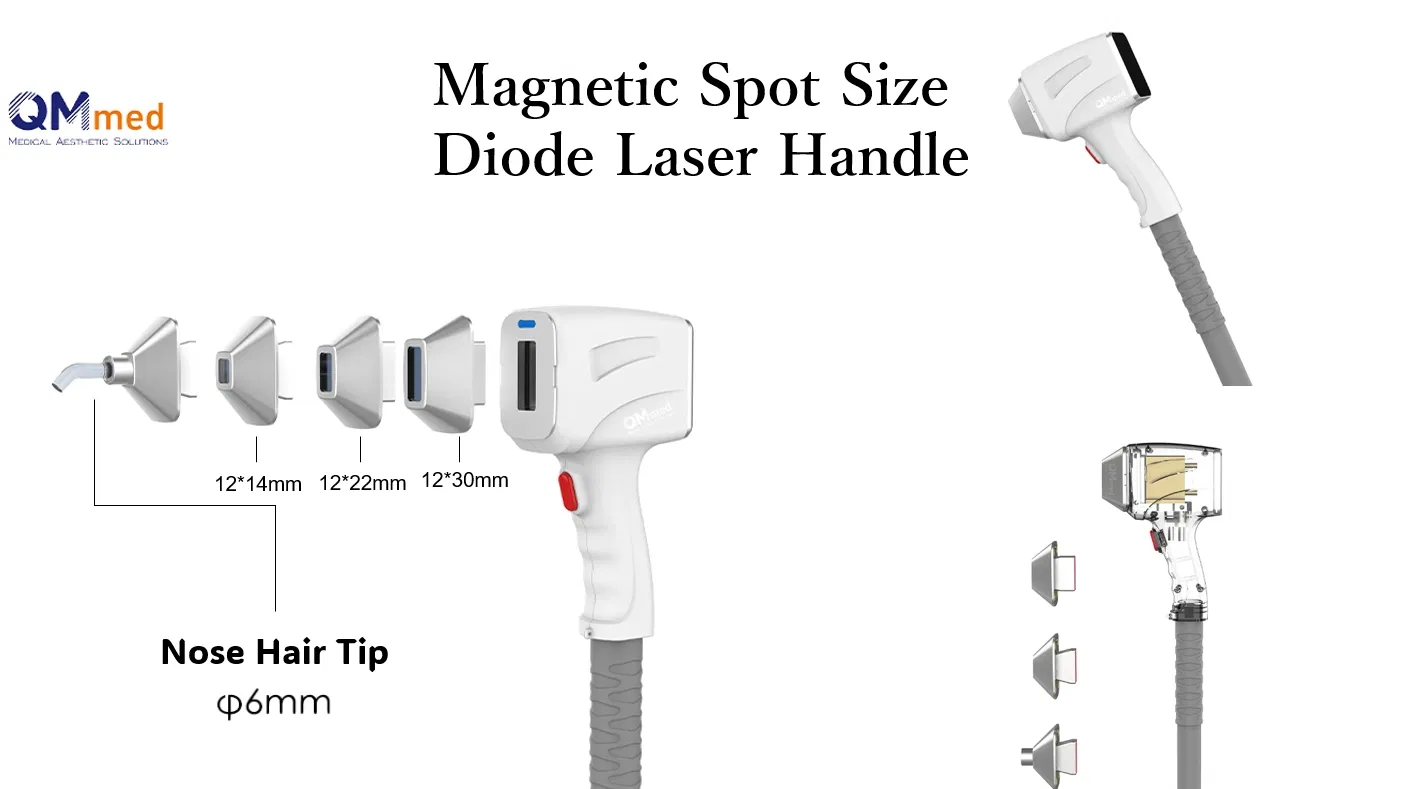

● Adjustable Spot Sizes (12*12mm to 12*36mm)

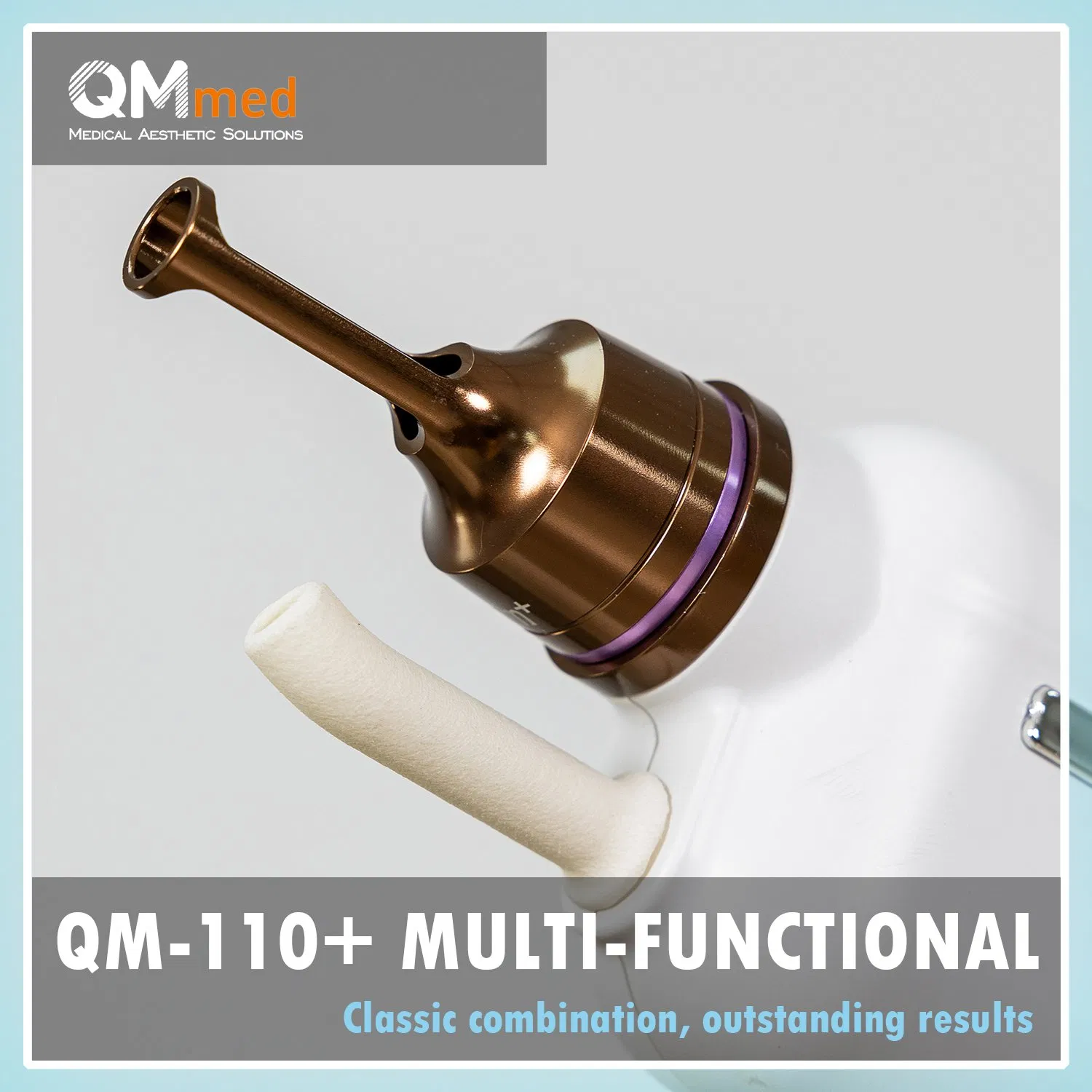

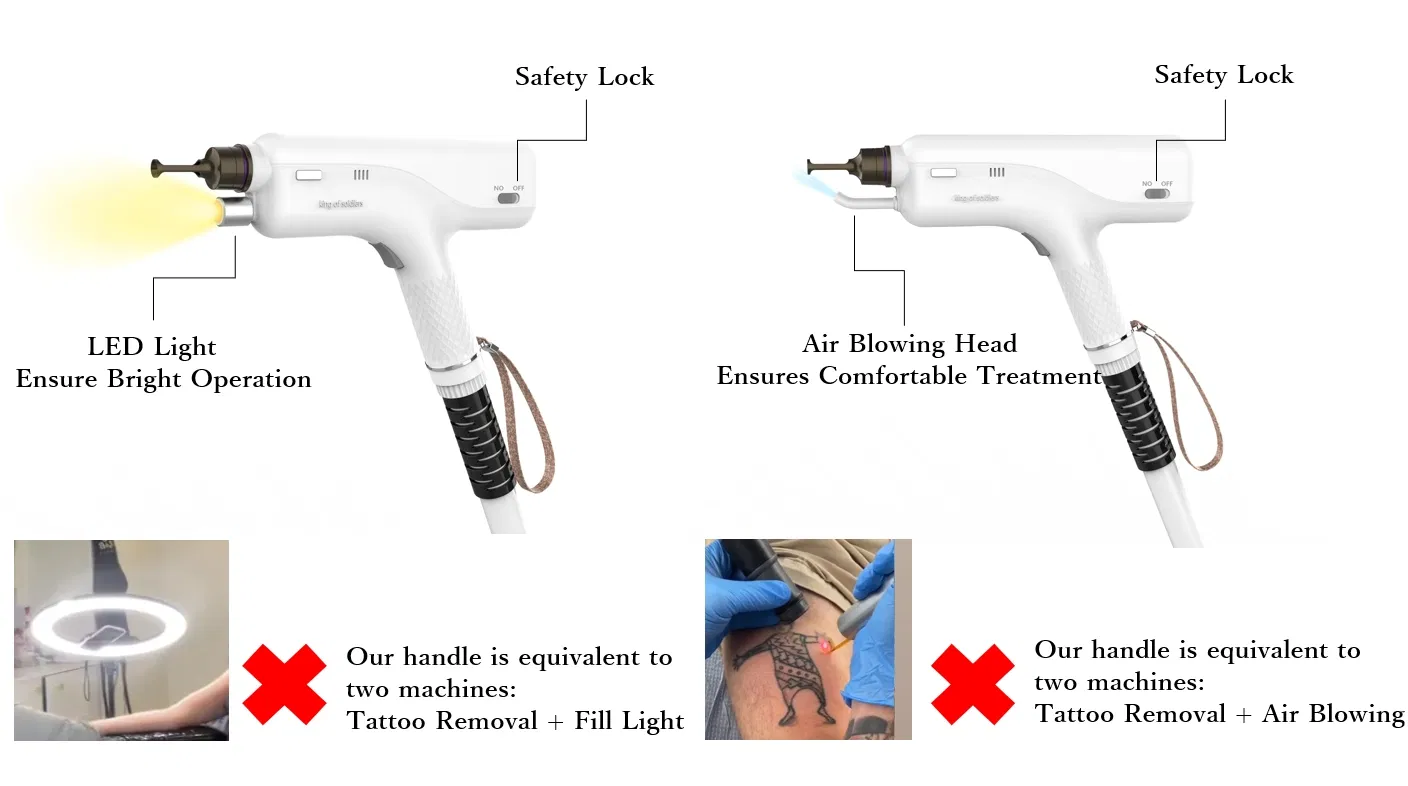

● Air Cooler Head for ND: YAG Comfort

Technical Comparison

Parameter	Diode Laser System	Q-Switched Nd:YAG
Machine Power	3000W	500W
Energy Max	1-100J/cm²	1-2000mJ
Wavelength	808nm (755/940/1064 optional)	1064nm, 532nm, 1320nm
Pulse Duration	10-300ms	<7ns
Spot Size	1212 / 1224 / 12*36mm	2-7mm
Cooling	360 Refrigeration Sheet	Air Cooling
Stand-by Time	20 Hours	20 Hours

Treatment Results

Quality & Packaging

Frequently Asked Questions

1. What treatments can this platform perform?

This 2-in-1 platform combines Diode Laser and Q-Switched ND:YAG technology. It is designed for permanent hair removal, tattoo removal, skin rejuvenation, carbon peeling, and treatment of pigmented lesions like freckles and age spots.

2. Is the hair removal process painful?

The system features a 360-degree sapphire contact cooling tip that maintains a low temperature on the skin surface. This makes the treatment virtually painless and protects the surrounding tissue while effectively destroying the hair follicle.

3. How many wavelengths are supported for hair removal?

The diode laser system typically supports the 808nm gold standard wavelength. Optional configurations include a combination of 755nm, 808nm, 940nm, and 1064nm to treat all skin and hair types effectively.

4. Can the ND:YAG laser remove all tattoo colors?

Yes, it uses multiple wavelengths: 1064nm for dark colors (black, blue), 532nm for brighter colors (red, orange, brown), and an optional 755nm honeycomb head for stubborn pigments.

5. What is the advantage of the 4K touchscreen?

The 15.6-inch 4K touchscreen provides a highly intuitive and user-friendly interface. It allows operators to easily adjust energy levels, pulse frequency, and cooling settings with high precision.

6. What is the typical delivery time?

Standard orders are typically processed and shipped within 3-7 working days after payment confirmation. Custom OEM/ODM orders may require additional time depending on the requirements.
